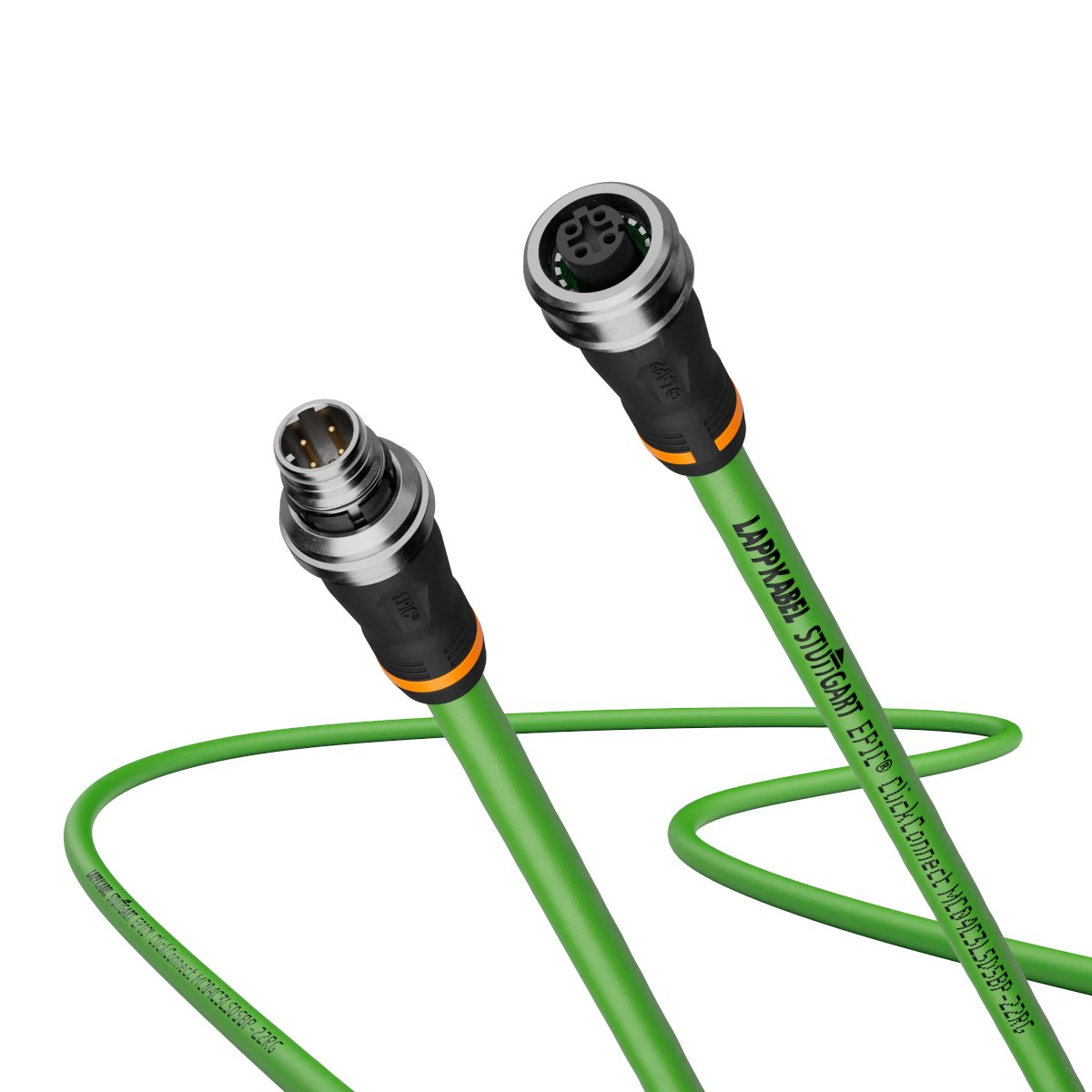

Pre-assembled Ethernet cable; PROFINET; Cat.5e; Polyvinylchloride; ; M 12 (D-coded), Plug, Straight (180 °); M 12 (D-coded), Socket, Straight (180 °); 2 mCopied to clipboard
Add to product comparison
Price
34,50 €
(3.449,69 €/100 PC)
1 PC per packing unit
Login for the stock enquiry.
Loading...
Load availability ...
Benefits
- The patch cable assembled on both sides saves time during installation and reduces or eliminates the potential for errors during on-site assembly.
- The two M12 connectors with innovative push-pull locking in accordance with DIN EN IEC 61076-2-010 are plugged in and locked or unlocked completely without tools. Thanks to this technology, there is no need for the labour-intensive screwing that is otherwise required for conventional M12 connections.
- Fast information exchange through Ethernet technology.
- Cat. 5e performance up to 100 Mbit/s.
- Ideal protection against electromagnetic interference thanks to double shielding made of aluminium-laminated foil and copper stranded shielding with high degree of coverage (SF/UTP).
- Halogen-free core insulation and sheath compound to comply with special fire safety requirements.
Application
- For highly flexible, constantly moving use in moving machine parts and in cable chains in the PROFINET network (type C).
- Also suitable for EtherCAT and EtherNet/IP applications.
- Can be used in dry and damp conditions, and especially in harsh and oily spaces.
- The PUR outer sheath and connectors withstand high mechanical stresses.
- The PUR outer sheath is resistant to mineral oil-based lubricants and highly resistant to chemicals.
