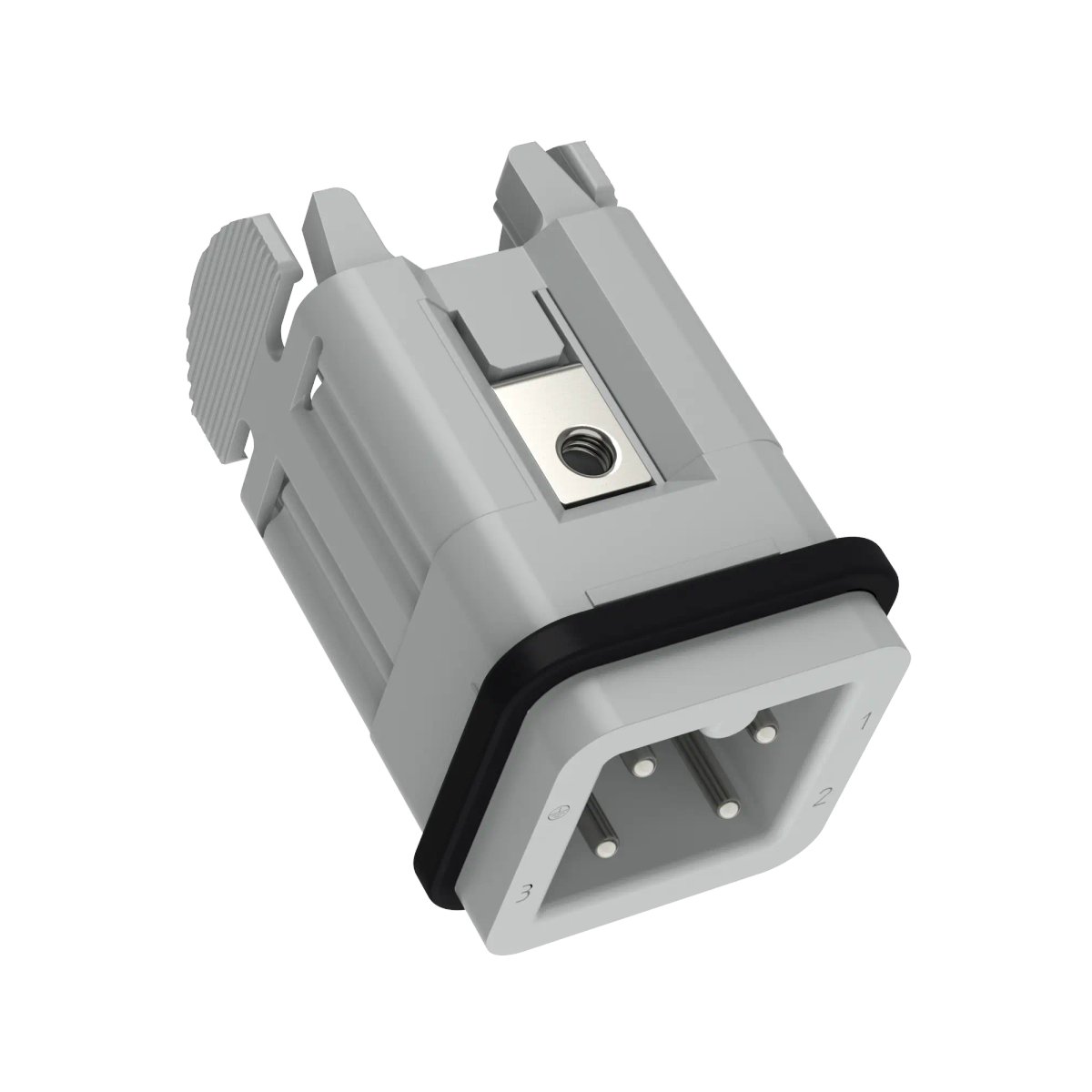

Insert with screw connection Pin; Number of contacts: 3+PE; Design size: 3A; 400 V AC rms / DC according to IEC; 10 A according to UL/CSA; For cross-section (min./max.): 0.5mm² - 2.5mm²; Contacts included; PolyamideCopied to clipboard
Add to product comparison
Price
55,36 €
(553,64 €/100 PC)
10 PC per packing unit
Login for the stock enquiry.
Available. Find out the shipping date in the order summary.
Benefits
- Easy to assemble due to straight conductor insertion.
- Service-friendly screw connection enables assembly without special tools.
- The small design size make it suitable for use in limited spaces.
- Wide variety of suitable housing variants.
- UL certification according to technical data enables the product to be used on the North American market.
Application
- For connecting devices and machines to a power supply in various applications
- For use with housings from the EPIC® H-A 3 series.
- Suitable for outdoor use, subject to the temperature range.
