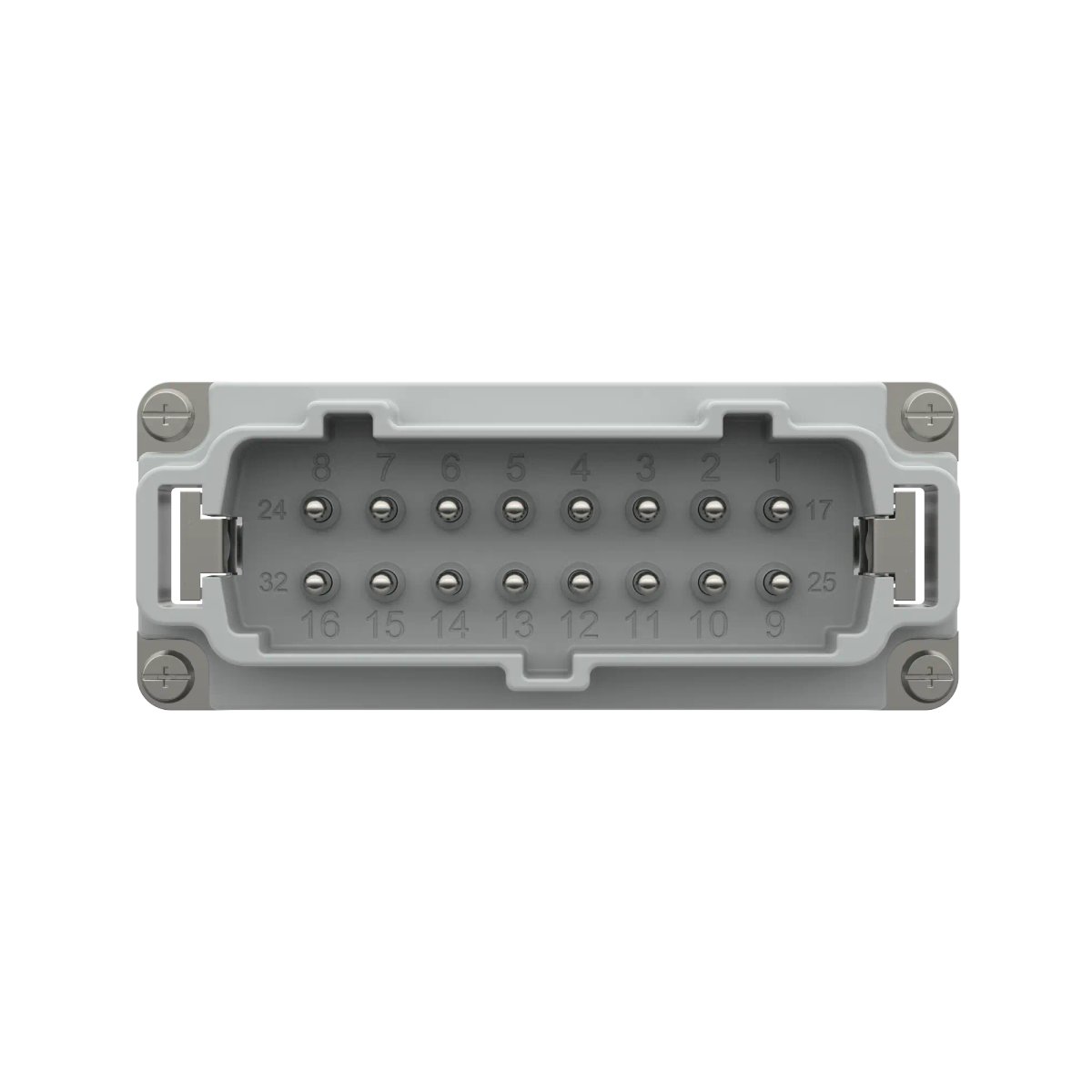

Insert with screw connection Pin; Number of contacts: 16+PE; Design size: 16B; 500 V AC rms / DC according to IEC; 16 A according to UL/CSA; For cross-section (min./max.): 0.5mm² - 2.5mm²; Contacts included; PolycarbonateCopied to clipboard
Add to product comparison
Benefits
- Inserts from the EPIC® H-BE series are regarded as classics in the industry and are ideal for use at higher voltages and currents.
- In the EPIC® H-BE series, inserts of different connection types can be combined with one another (screw, crimp, cage spring or push-in) within the same size.
- Service-friendly screw connection enables assembly without special tools.
- Made of robust polycarbonate (flammability class V-0 according to the UL94 testing procedure for the flammability of plastics).
- Can be used in railway vehicles in accordance with standards for selected articles (fire behaviour test in accordance with DIN EN 45545-2:2016-02, requirement sets R22 and R23, hazard levels HL1, HL2 and HL3).
- UL certification according to technical data enables the product to be used on the North American market.
- Also certified to UL 508 A/ UL 2237 for applications in control cabinets (depending on article).
- Article available with or without wire protection. The wire protection enables direct connection of strands without end sleeves.
- Wide variety of suitable housing variants.
Application
- For connecting devices and machines to a power supply in various applications.
- Suitable for wiring inside control cabinets.
- For transmission of control signals to actuators.
- Typical applications include platform, lighting and lifting technology.
