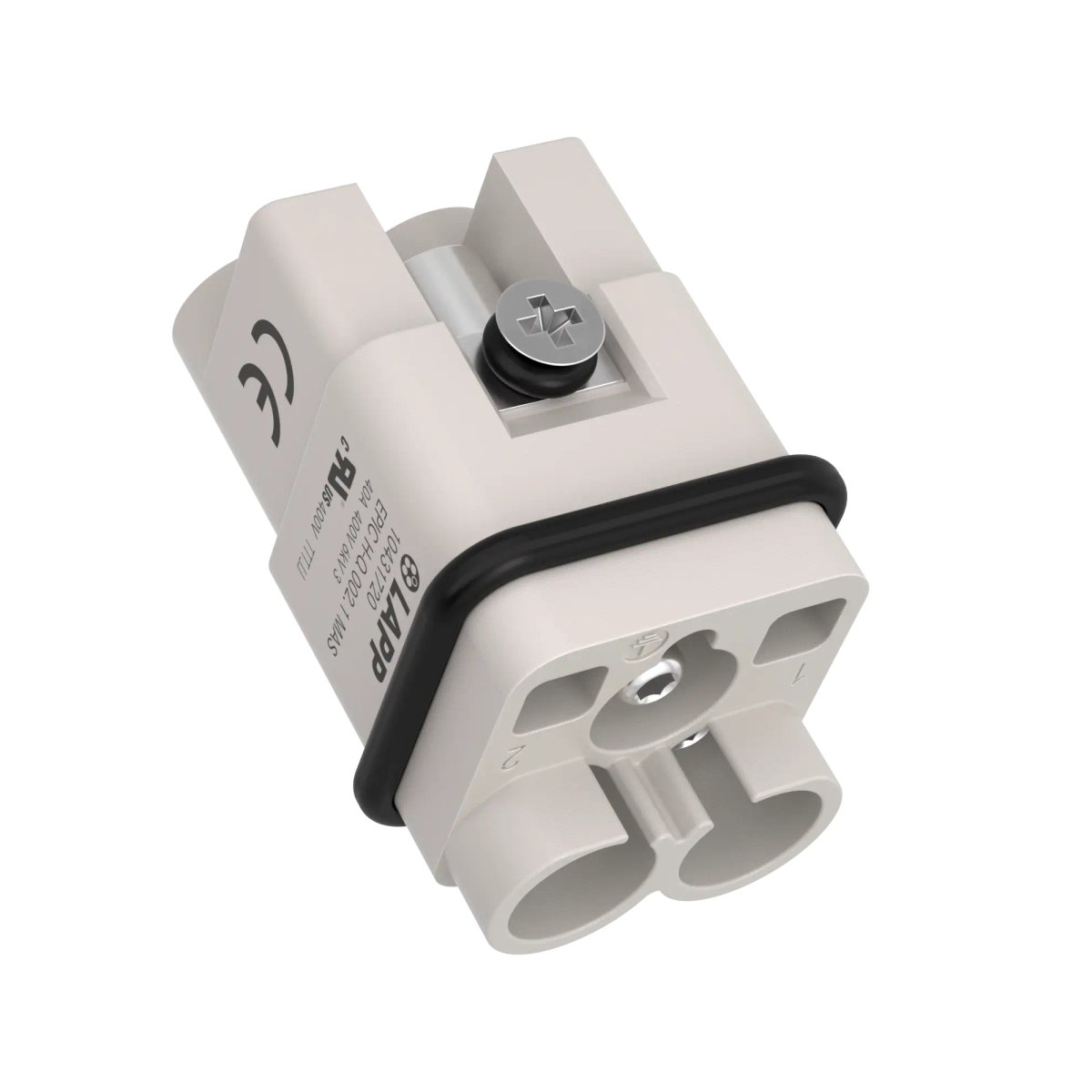

Insert with screw connection Pin; Number of contacts: 2+PE; Design size: 3A; 400 V AC rms / DC according to IEC; 40 A according to IEC; For cross-section (min./max.): 2.5mm² - 6mm²; Contacts included; PolycarbonateCopied to clipboard
Add to product comparison
- High power up to 40 A despite extremely space-saving design for very small devices.
- Available in variants with a rated voltage of 400 V or 830 V. Article names with the suffix "V" are designed for a rated voltage of 830 V.
- Axial screw termination technology allows service-friendly connection without a special crimping tool, saves costs and is suitable for detachable connections.
- Simple cable connection using an Allen key.
- Easy to assemble due to straight conductor insertion.
- The small design size make it suitable for use in limited spaces.
- Wide variety of suitable housing variants.
- UL certification according to technical data enables the product to be used on the North American market.
- Silver-plated contact surface for low contact resistances and minimum heat generation at the contact.
- For connecting devices and machines to a power supply in various applications.
- For use with housings from the EPIC® H-A 3 series.
- Suitable for outdoor use, subject to the temperature range.
