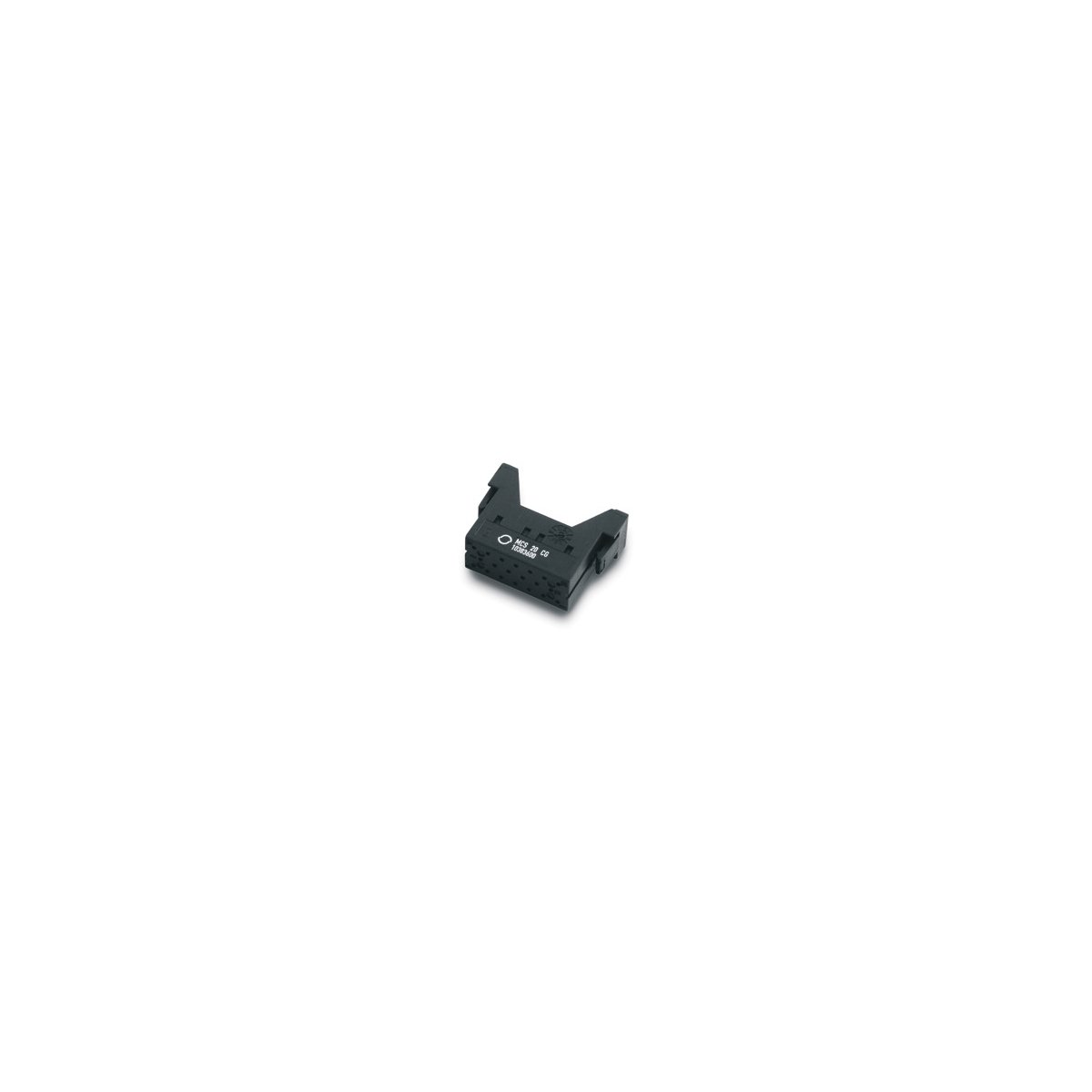

MC module modular system; Crimp termination; Number of contacts: 20; Required slots: 1; For cross-section (min./max.): 0.08mm² - 0.56mm²; 100 V AC rms / DC according to UL/CSA; 4 A according to IECCopied to clipboard
Add to product comparison
Benefits
- Module for accomodating 20 signal contacts for transmissions up to 4 A.
- Modular connectors offer a wide range of possible combinations and can be assembled flexibly - even to create hybrid connectors for different media.
- Made of robust plastic (flammability class V-0 according to the UL94 testing procedure for the flammability of plastics).
- Snaps effortlessly into the matching module frame.
- Different crimp contacts available for different conductor cross-sections.
- UL certification according to technical data enables the product to be used on the North American market.
Application
- For the production of a modular connector.
- Can be used universally at machine interfaces for many signal transmission applications.
- For use with the rectangular connector module frames of the EPIC® MC series.
- For use with many EPIC® rectangular connector housings.
