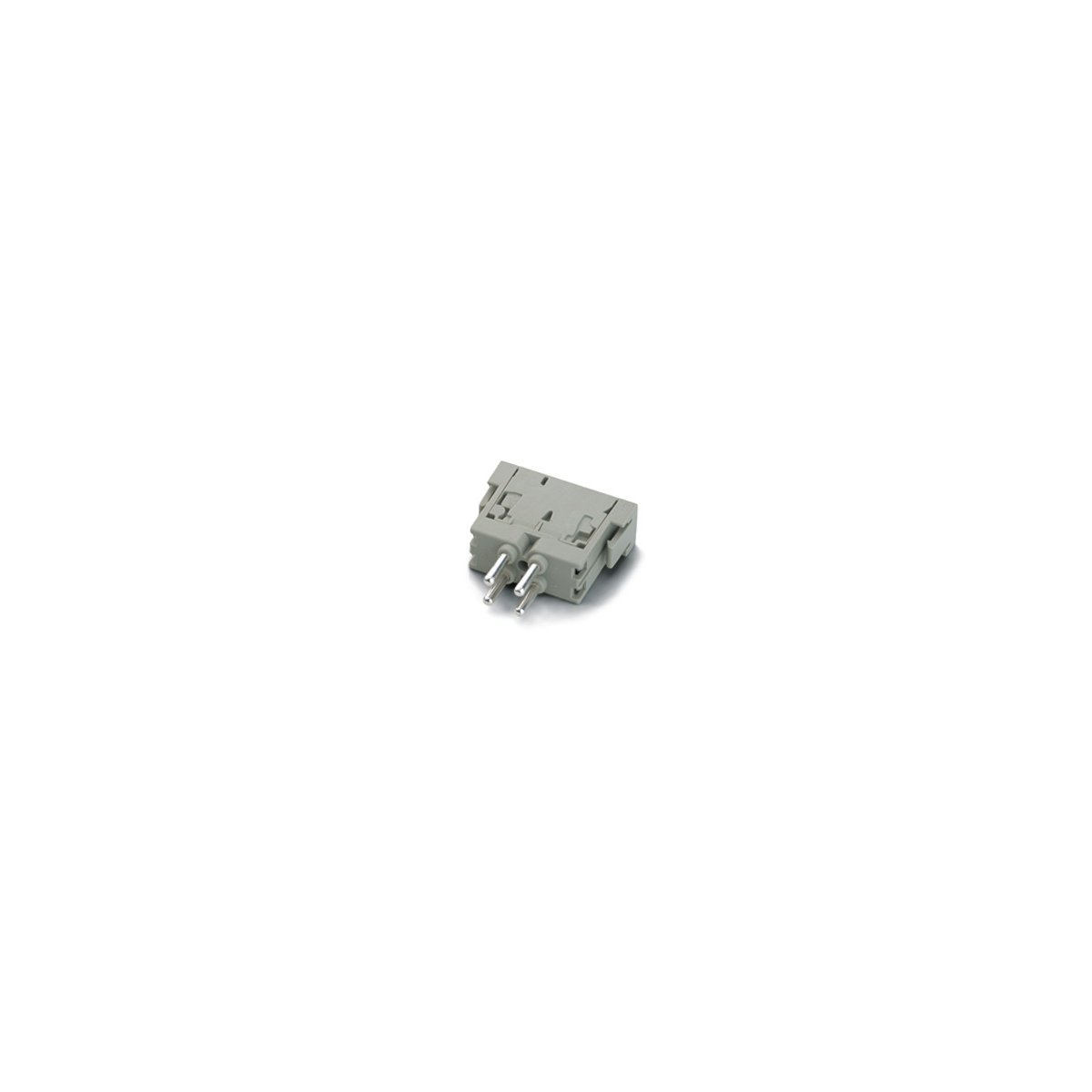

MC module modular system; Cage spring; Number of contacts: 4; Contacts included; Required slots: 1; For cross-section (min./max.): 0.5mm² - 2.5mm²; 400 V AC rms / DC according to IEC; 14 A according to IECCopied to clipboard
Add to product comparison
Benefits
- Module with 4 power contacts for power supplies up to 14 A and voltages up to 400 V.
- Modular connectors offer a wide range of possible combinations and can be assembled flexibly - even to create hybrid connectors for different media.
- A cage spring connection enables assembly without special tools and establishes a removable, vibration-proof connection between the contact and the cable.
- Made of robust plastic (flammability class V-0 according to the UL94 testing procedure for the flammability of plastics).
- Snaps effortlessly into the matching module frame.
- UL certification according to technical data enables the product to be used on the North American market.
Application
- For the production of a modular connector.
- For connecting devices and machines to a power supply in various applications.
- For use with the rectangular connector module frames of the EPIC® MC series.
- For use with many EPIC® rectangular connector housings.
