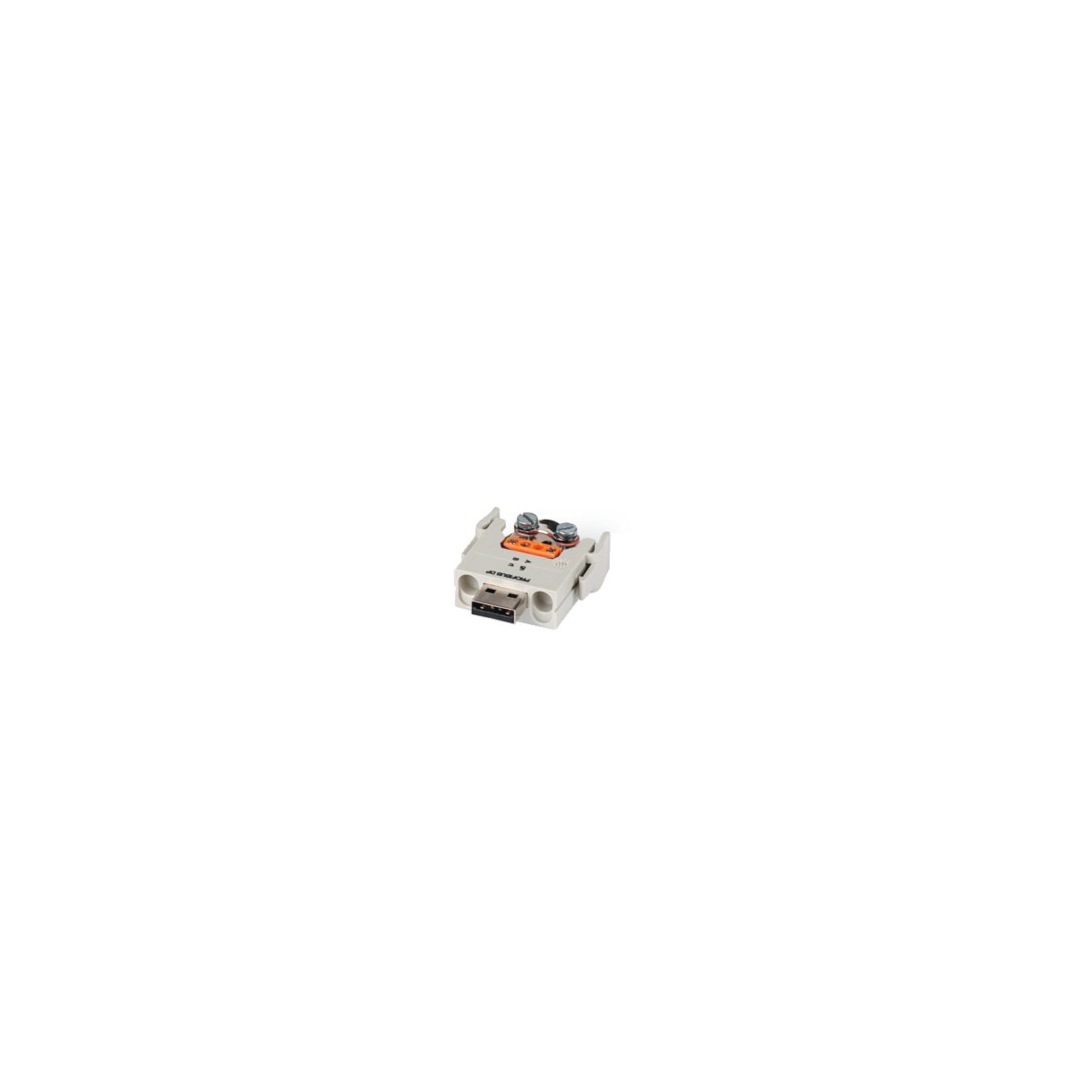

MC module modular system; Screw connection; Number of contacts: 2; Contacts included; Required slots: 1; 30 V AC rms / DC according to IEC; 1 A according to IECCopied to clipboard
Add to product comparison
- Module for looping through a PROFIBUS®-DP data cable, with T-branch for connecting another fieldbus device.
- Bus topology enables uninterrupted fieldbus operation even when the connector is unplugged.
- Data transmission rates of up to 12 Mbit/s possible.
- Modular connectors offer a wide range of possible combinations and can be assembled flexibly - even to create hybrid connectors for different media.
- The service-friendly screw connection makes assembly possible without a special tool, and is suitable for connections which need to be detached again.
- Protection against electromagnetic interference by contacting the cable shield via the strain relief bracket.
- Snaps effortlessly into the matching module frame.
- For the production of a modular connector.
- For fieldbus communication in PROFIBUS®-based networks.
- For use with the rectangular connector module frames of the EPIC® MC series.
- For use with many EPIC® rectangular connector housings.
