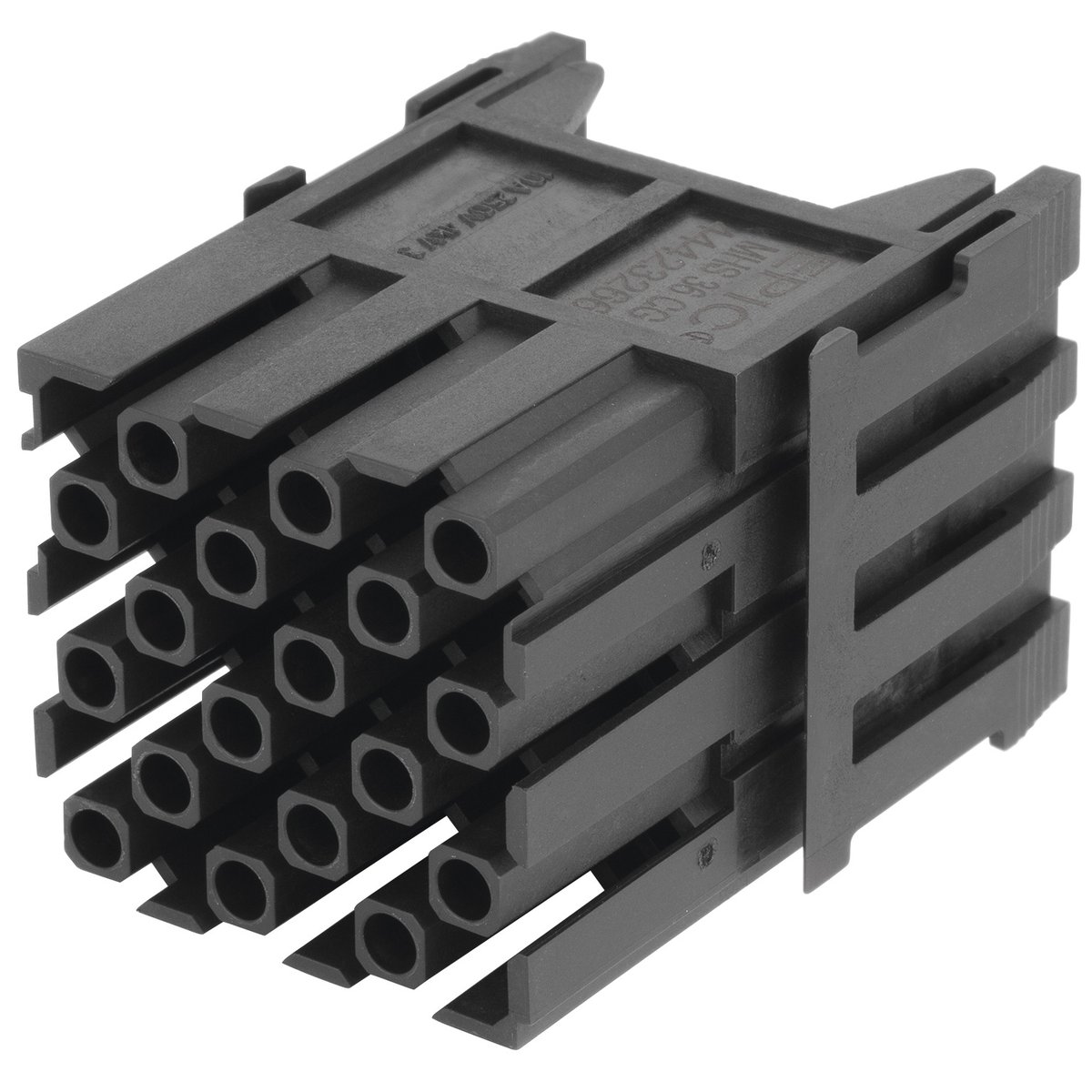

MH module modular system; Crimp termination; Number of contacts: 36; Required slots: 2; For cross-section (min./max.): 0.14mm² - 2.5mm²; 250 V AC rms / DC according to IEC; 16 A according to IECCopied to clipboard
Add to product comparison
- Double module for accommodating 36 signal contacts (18 pin and 18 socket contacts each) for transmissions up to 10 A and high packing density enables many contacts in a very small space.
- Modular connectors offer a wide range of possible combinations and can be assembled flexibly - even to create hybrid connectors for different media.
- Different crimp contacts available for different conductor cross-sections.
- Locks effortlessly into the fixed EPIC® MH multi-frame with an audible click. Much easier assembly than hinged and sliding frames.
- Compliant with standards for use in railway vehicles (fire behaviour test according to DIN EN 45545-2:2016-02, requirements sets R22 and R23, hazard levels HL1, HL2 and HL3).
- UL certification according to technical data enables the product to be used on the North American market.
- For the production of a modular rectangular connector insert.
- Can be used universally at machine interfaces for many signal transmission applications.
- For supplying power for signalling, lighting and devices.
- For use with the rectangular connector module frames of the EPIC® MH series.
- For use with many EPIC® rectangular connector housings.
