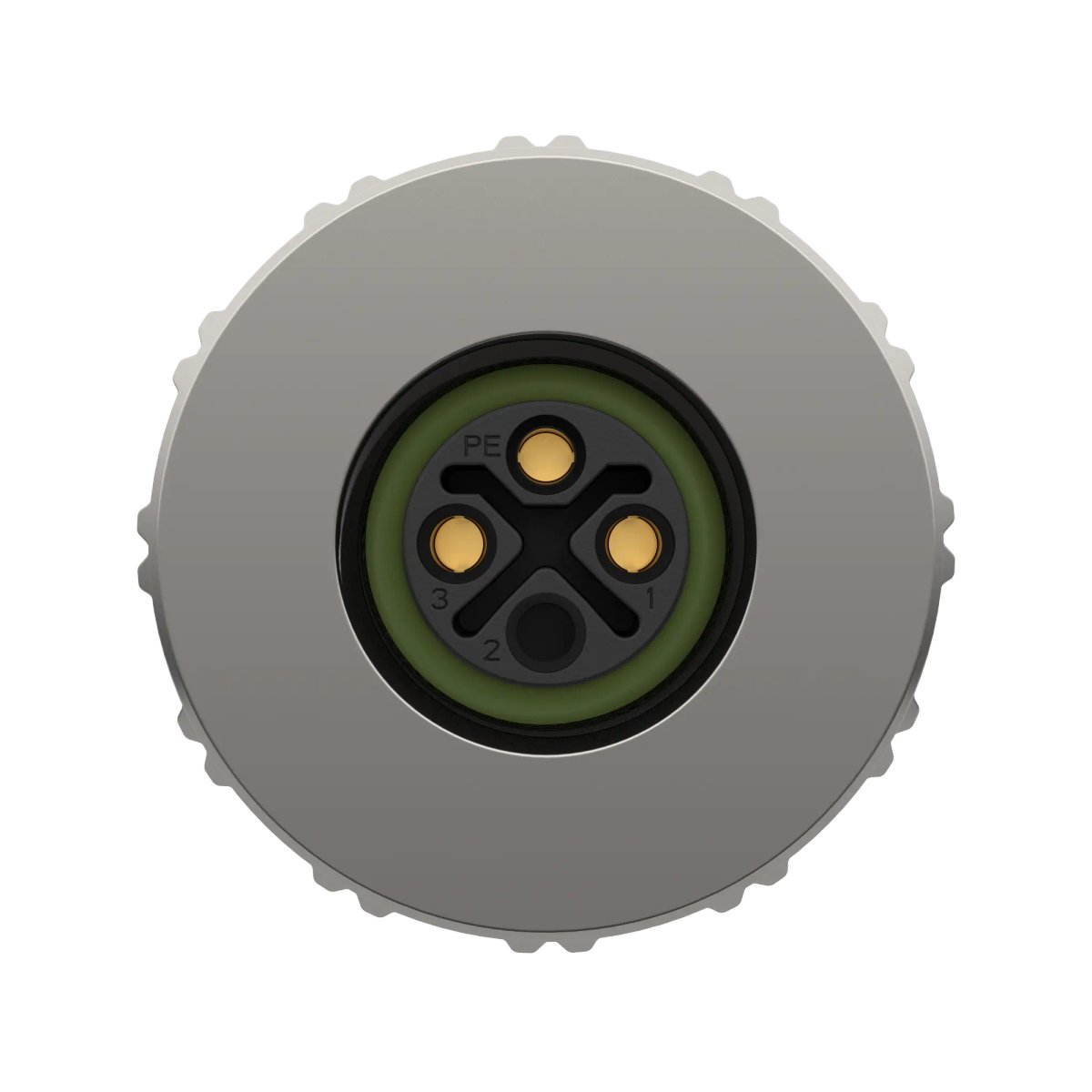

EPIC® POWER M12S Screw termination
Circular connector; M 12 power; S-coded; Socket; Number of contacts: 2+PE; For cross-section (min./max.): 0.5mm² - 2.5mm²; Clamping range (min./max.): 8mm - 12mm
Add to product comparison
Benefits
- High stability thanks to impact-resistant polyamide.
- Powerful up to 12 A despite extremely space-saving design for tight spaces.
- The mechanical S-coding of the connector face prevents incorrect plugging with mating connectors.
- The service-friendly screw connection makes assembly possible without a special tool, and is suitable for connections which need to be detached again.
- When connected, protection class IP 67 can be achieved.
- Available in different designs and with different pole configurations.
Application
- For connecting three-phase motors up to 7.5 kW.
- For connecting devices and machines to a power supply in various applications
- Good oil and chemical resistance.
