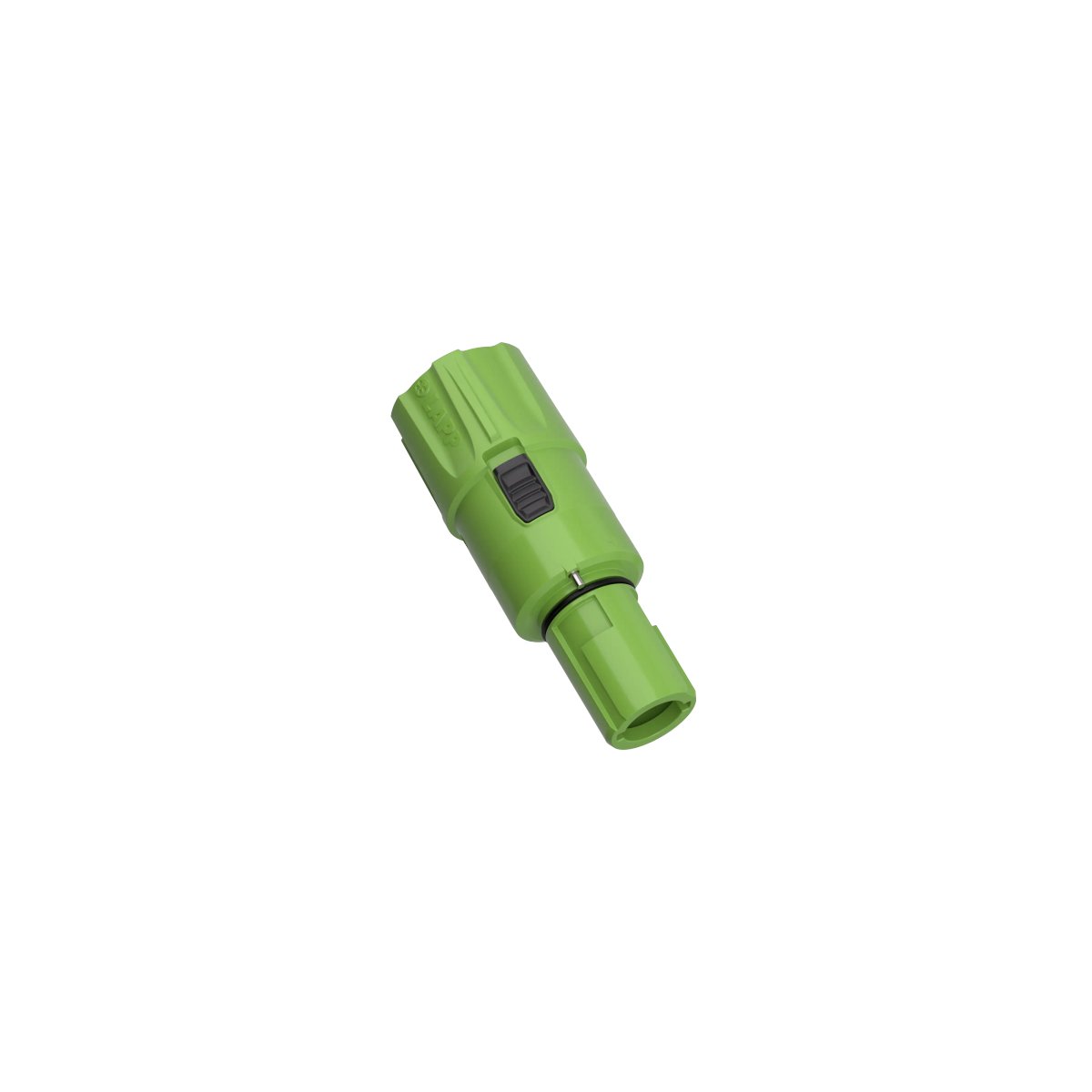

EPIC® POWERLOCK F6
Cable coupler hood; Cable coupler hood; For cross-section (min./max.): 35mm² - 240mm²;
Add to product comparison
Benefits
- Integrated unlocking function for quick and safe plugging and unplugging without additional tools.
- Coupling connector drain (type F6) for use with a contact drain (available separately).
- Available in harmonised colours according to European standard (colour coding for DC and AC).
- For conductor cross-sections up to 240 mm².
- High stability due to robust PBT plastic.
- With M40 thread for use with a corresponding cable gland.
- When connected, protection class IP 67 can be achieved.
- VDE-tested quality.
- Compliant with standards for inland navigation (in accordance with DIN VDE 0100-730 Part 7-730 "Electrical land connection for inland navigation vehicles".
Application
- Can be used for mobile and stationary power supply or emergency power supply via generators or battery storage systems.
- Suitable for electric motors and cooling units.
- For use with unscreened single cores.
- Withstands moderate mechanical stress.
- Suitable for outdoor use.
