381166462
Solar connector, Socket; 50 A according to IEC; 1500 V DC according to IEC; Housing base material: Polycarbonate; IP 68 - 1m (1h);

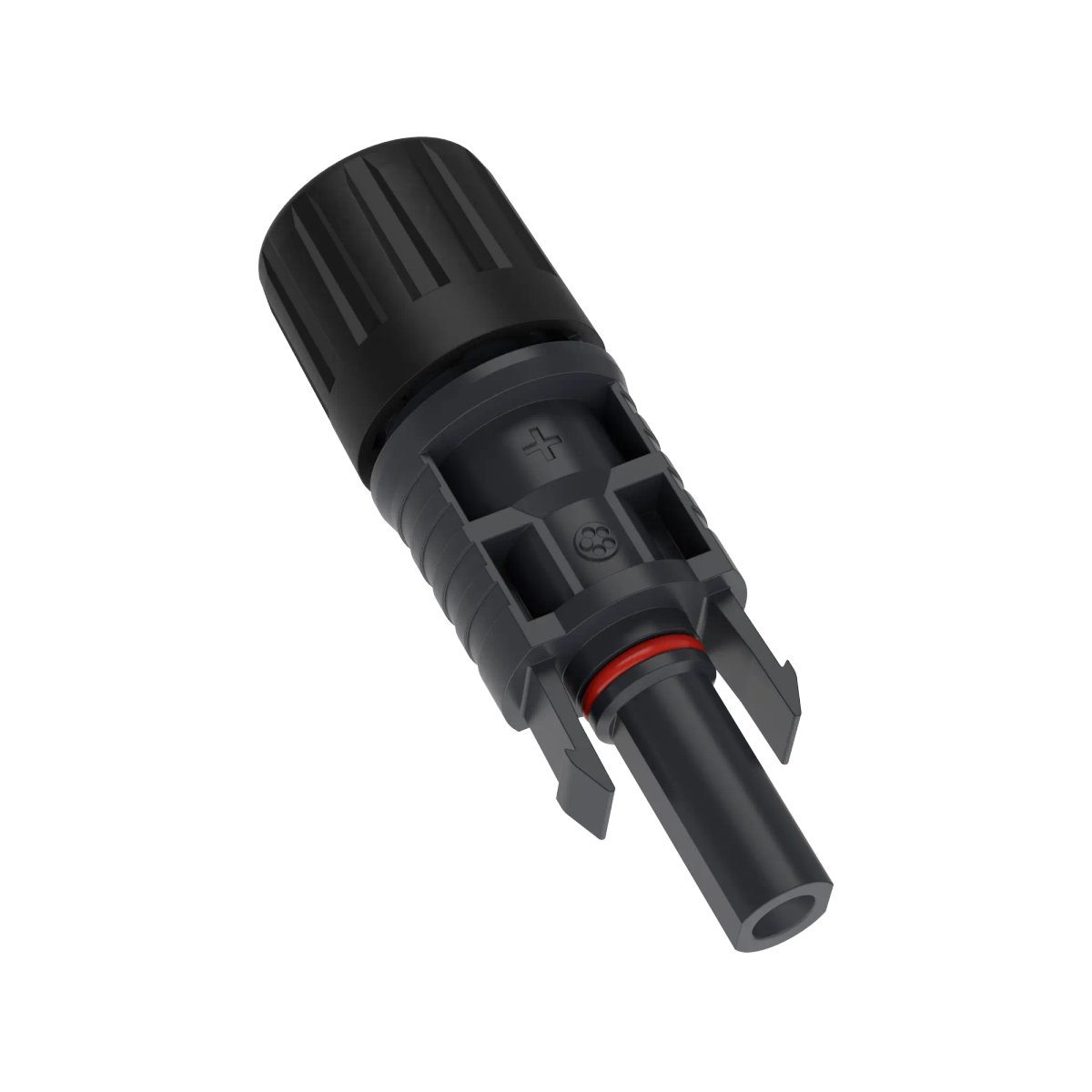

EPIC® SOLAR 4 GEN2 F 5.2-7.0mm
Add to product comparison
Price
691,25 €
(98,75 €/100 PC)
700 PC per packing unit
Login for the stock enquiry.
Available. Find out the delivery date in the offer.
Benefits
- Extremely weatherproof and durable thanks to the high-quality materials and solid construction.
- Compatible with other systems on the market.
- Ideal for fully automated connector assembly.
- Self-retaining cap nut and contacting with haptic feedback simplify assembly and provide protection from tampering.
- Double snap-in hooks secure the crimp contact to the connector.
- Low contact resistance at the contact point between the plug and socket for efficient energy transmission.
- Suitable for conductor cross-sections of up to 6 mm2 for overcoming long cable distances.
- With the TÜV SÜD testing mark.
- Articles available with or without contacts. Articles without contacts available in different packaging units.
Application
- For the cabling of solar modules, inverters and stand-alone systems.
- For modern, high-performance photovoltaic systems up to 1500 V.
- For use with EPIC® SOLAR 4 GEN2 M mating connectors (pin insert).
- Can be used with many ÖLFLEX® solar cables.
- Plugged connections have protection class IP 68 (1 m for 1 h).
