2172207

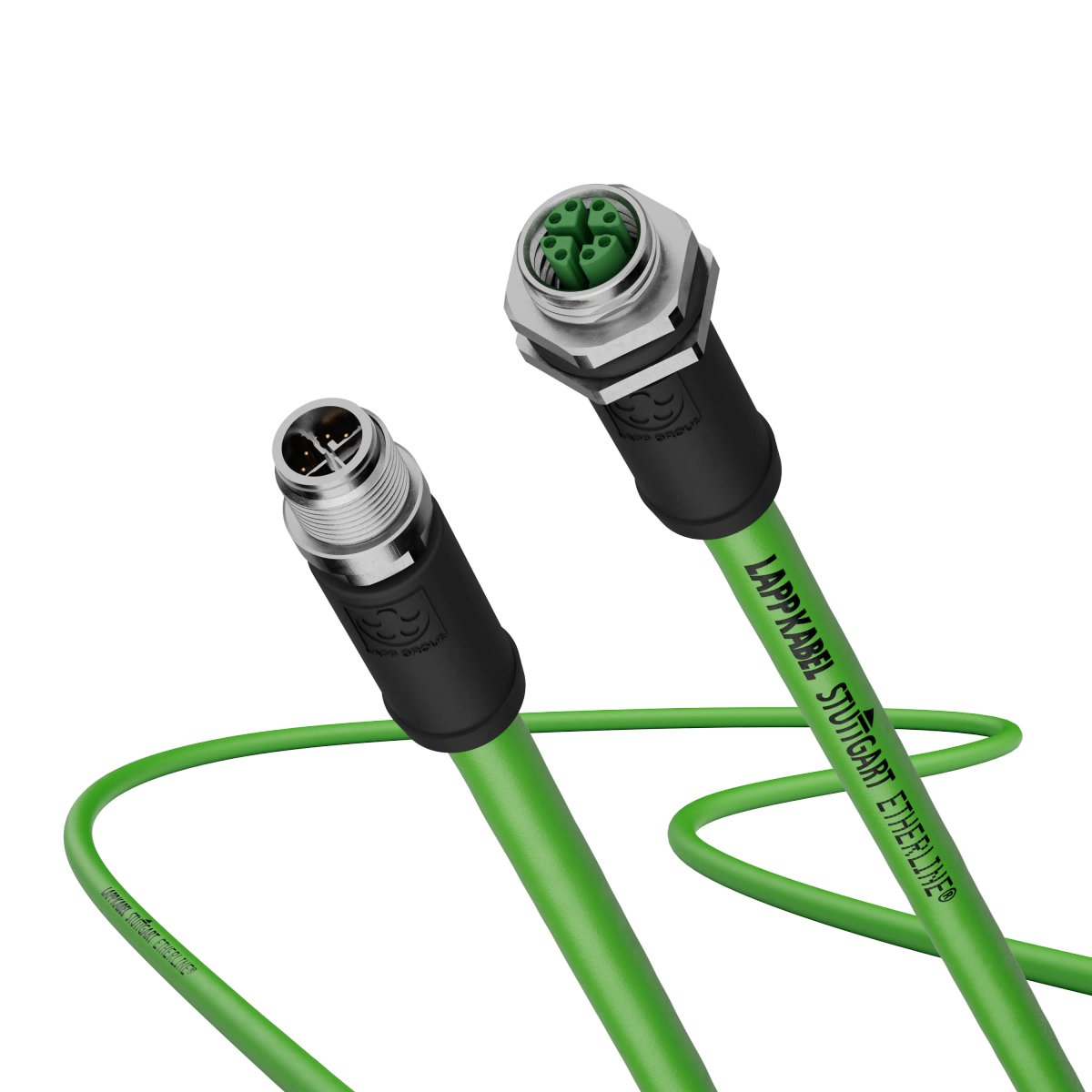

Pre-assembled Ethernet cable; Cable chain, Flexible; EtherCAT, ETHERNET/IP; Cat.6; SF/UTP; Polyurethane; 4x2; M 12 (X-coded), Socket, Straight (180 °); M 12 (X-coded), Plug, Straight (180 °); 0.5 m
IE-6-M12XF-S-0,5-P-4-26-FD-M12X-S
Add to product comparison
Price
Would you like a personalized offer for this item?
Request price
1 PC per packing unit
Please observe the minimum order quantity of 50 PC.
Login for the stock enquiry.
Loading...
Load availability ...
Benefits
- Rapid information exchange at up to 10 Gbit/s over 60 m thanks to Cat.6 Ethernet.
- Cable assembled on one or both sides saves time during installation and reduces or eliminates the potential for errors during on-site assembly.
- Highly flexible cable design with a cross separator to protect the core pairs for maximum mechanical stress.
- The integrated vibration protection of the connector makes it resistant to shocks and vibrations.
- Ideal protection against electromagnetic interference thanks to double screening made of aluminium-laminated foil and copper screening braiding with high degree of coverage (SF/UTP).
- Durable, resistant product thanks to the outer sheath PU material that is resistant to abrasions, notches and cuts.
- Successfully tested for over 4 million bending cycles in cable chains.
Application
- The cable design allows flexible, continuously flexing use in moving machine parts and in the cable chain.
- Also suitable for EtherCAT and EtherNet/IP applications.
- Can be used in dry, damp and harsh environments.
- The PU outer sheath and connectors withstand high mechanical stresses.
- The PUR outer sheath is resistant to mineral oil-based lubricants and highly resistant to chemicals.
