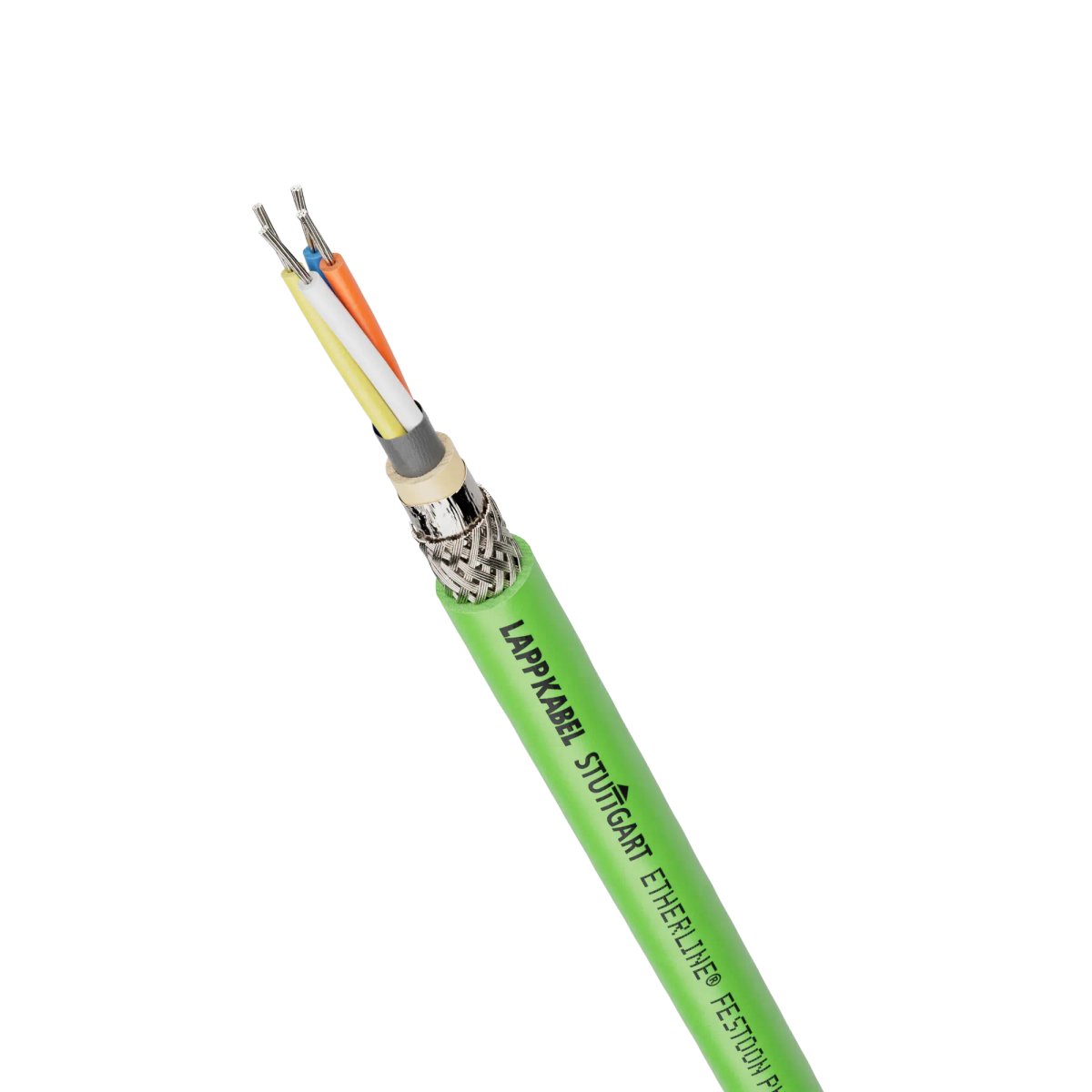

Ethernet cable; Cable chain, Flexible; ETHERNET/IP, PROFINET, Ethernet; PROFINET® application: Type C; Cat.5e; SF/UTP; PVC; greenCopied to clipboard
Add to product comparison
Benefits
- Fast information exchange through Ethernet technology.
- Cat. 5e performance up to 100 Mbit/s.
- For transmission of analogue and digital signals in the frequency range up to 100 MHz.
- The "Fast Connect" design, including inner sheath and cross separator, significantly reduces the cable assembly time, by eliminating the time-consuming removal of the pair shielding. It also provides undiminished shielding of the core pairs.
- High resistance to electromagnetic interference thanks to star quad stranding as well as double shielding made of aluminium-laminated foil and copper stranded shielding with a high degree of coverage (SF/UTP).
- UL/CSA certification according to technical data enables the product to be used in the North American market.
Application
- Specially designed for data and signal transmission in festoon systems (festoon suspension/cable trolley).
- For highly flexible, constantly moving use in moving machine parts and in cable chains in the PROFINET network (type C).
- Also suitable for EtherCAT and EtherNet/IP applications.
- Suitable for all LAN networks and Ethernet applications up to 100Base-T.
- Can be used in dry, damp and wet environments.
- Withstands high mechanical stress.
- PVC outer sheath is resistant to acids and alkalis and has increased oil resistance and flame retardance.
- Suitable for outdoor use.
