2172263

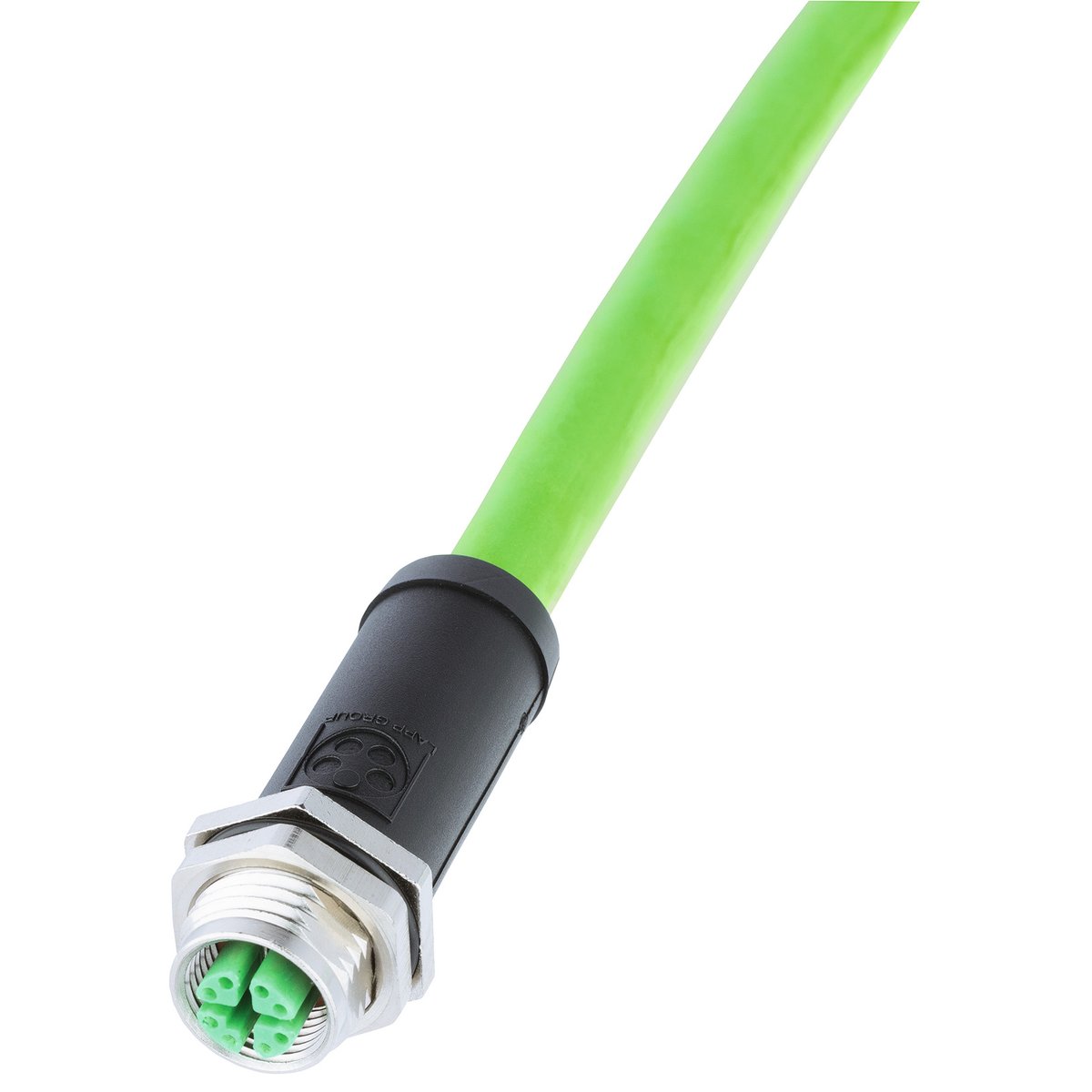

ETHERLINE® TORSION Cat.6A patchcords
Pre-assembled Ethernet cable; Torsion, Flexible; PROFINET, ETHERNET/IP; PROFINET® application: Type C; Cat.6A; SF/FTP; Polyurethane; 4x2; M 12 (X-coded), Plug, Straight (180 °); M 12 (X-coded), Plug, Straight (180 °); 0.5 m
IE-6A-M12X-S-0,5-P-4-24-T-M12X-S
Add to product comparison
Price
84,67 €
(8.466,56 €/100 items)
1 items per packing unit
Login for the stock enquiry.
Available. Find out the delivery date in the quotation.
Benefits
- Cable assembled on one or both sides saves time during installation and reduces or eliminates the potential for errors during on-site assembly.
- Special core stranding allows rotations with torsion angles of up to ± 180°/m. Cable successfully tested for 5 million torsion cycles.
- Ideal protection against electromagnetic interference due to pair screening with aluminium compound foil and copper screening braiding as overall screening (S/FTP).
- Halogen free core insulation and sheath compound to meet special fire safety requirements.
- The integrated vibration protection of the connector makes it resistant to shocks and vibrations.
- Cat. 6A performance up to 10 Gbit/s.
- For transmission of analogue and digital signals in the frequency range up to 500 MHz.
Application
- The cable design allows flexible, continuously flexing use under torsional stress in industrial robots and handling devices.
- Also suitable for torsion applications in wind turbines.
- For flexible use in the PROFINET network (type C).
- Also suitable for EtherCAT and EtherNet/IP applications.
- Can be used in dry and damp environments.
- The PUR outer sheath withstands high mechanical loads.
- The PUR outer sheath is resistant to mineral oil-based lubricants and highly resistant to chemicals.
- Suitable for outdoor use.
