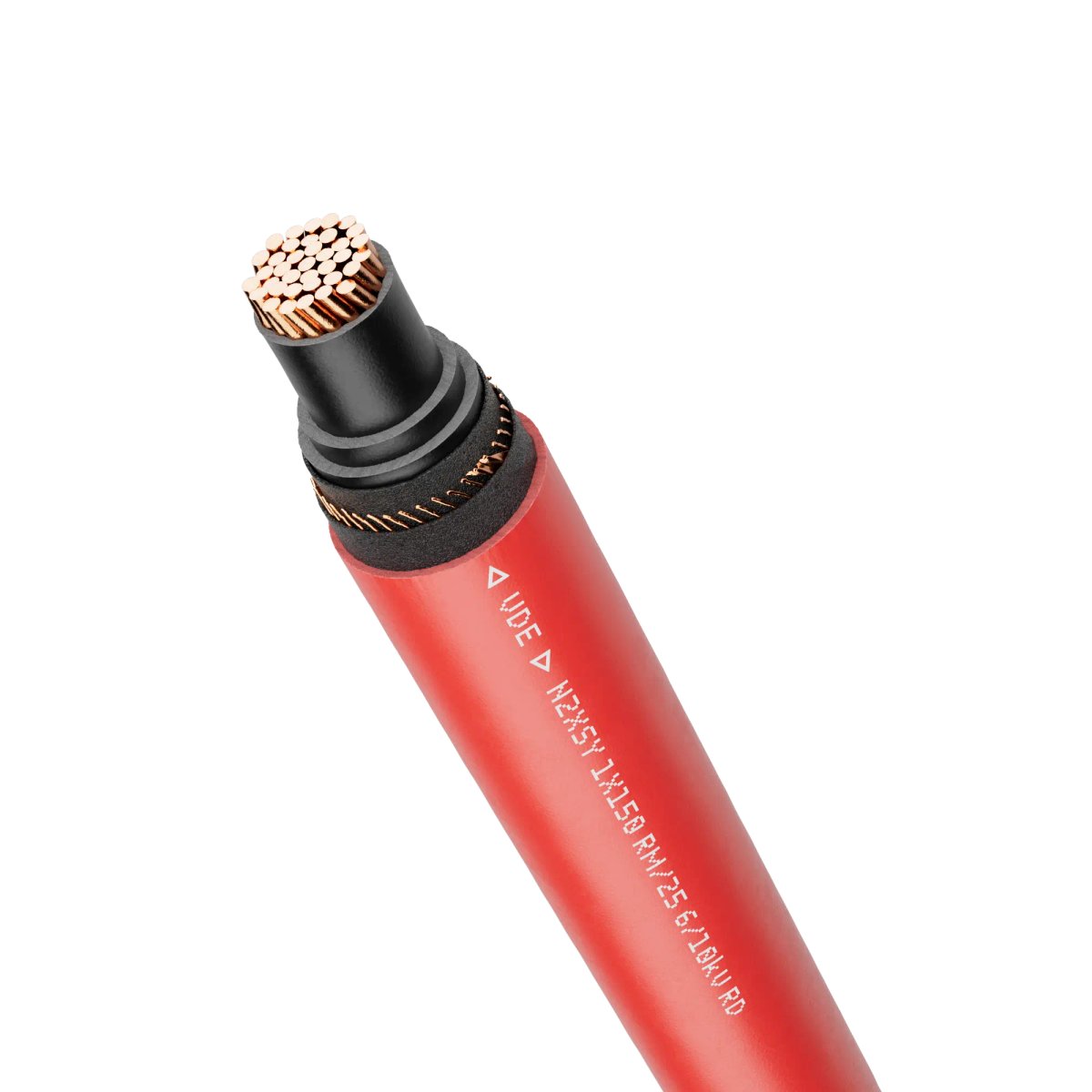

N2XSY
Medium-voltage cable; 1x150 RM; U0/U: 6/10 kV; Bare Copper; PVC; Shielded; VDE certified; Fixed Installation
Add to product comparison
Price on request
Would you like an individual quotation for this article?
Please observe the minimum order quantity of 3000 M.
Login for the stock enquiry.
Benefits
- VDE-certified cable with ◁VDE▷ testing mark for proven reliability and quality according to VDE 0276-620.
- Good installation properties enable easy installation, even in the event of difficult cable routing.
- Cross-linked conductive layers above and below the core insulation prevent partial discharges and enable constant operational safety.
- Available in conductor cross-sections up to 800 mm2.
- Available in voltage classes 6/10 (12) kV, 12/20 (24) kV and 18/30 (36) kV.
Application
- Suitable for energy distribution in medium-voltage networks.
- For fixed installation in water, air and earth. In the ground, the minimum installation depth without additional, suitable underground protection is 0.6 m, and at least 0.8 m under roads (according to HD 620/VDE 0276-620 Part 10-C (point 4)).
- Also suitable for indoor installation and closed installation ducts for energy supply company, industrial and distribution networks.
- Suitable for medium mechanical stress due to the PVC outer sheath.
- Suitable for outdoor use, subject to the temperature range and only if protected against direct sunlight.
- Use at temperatures up to -40°C possible.
