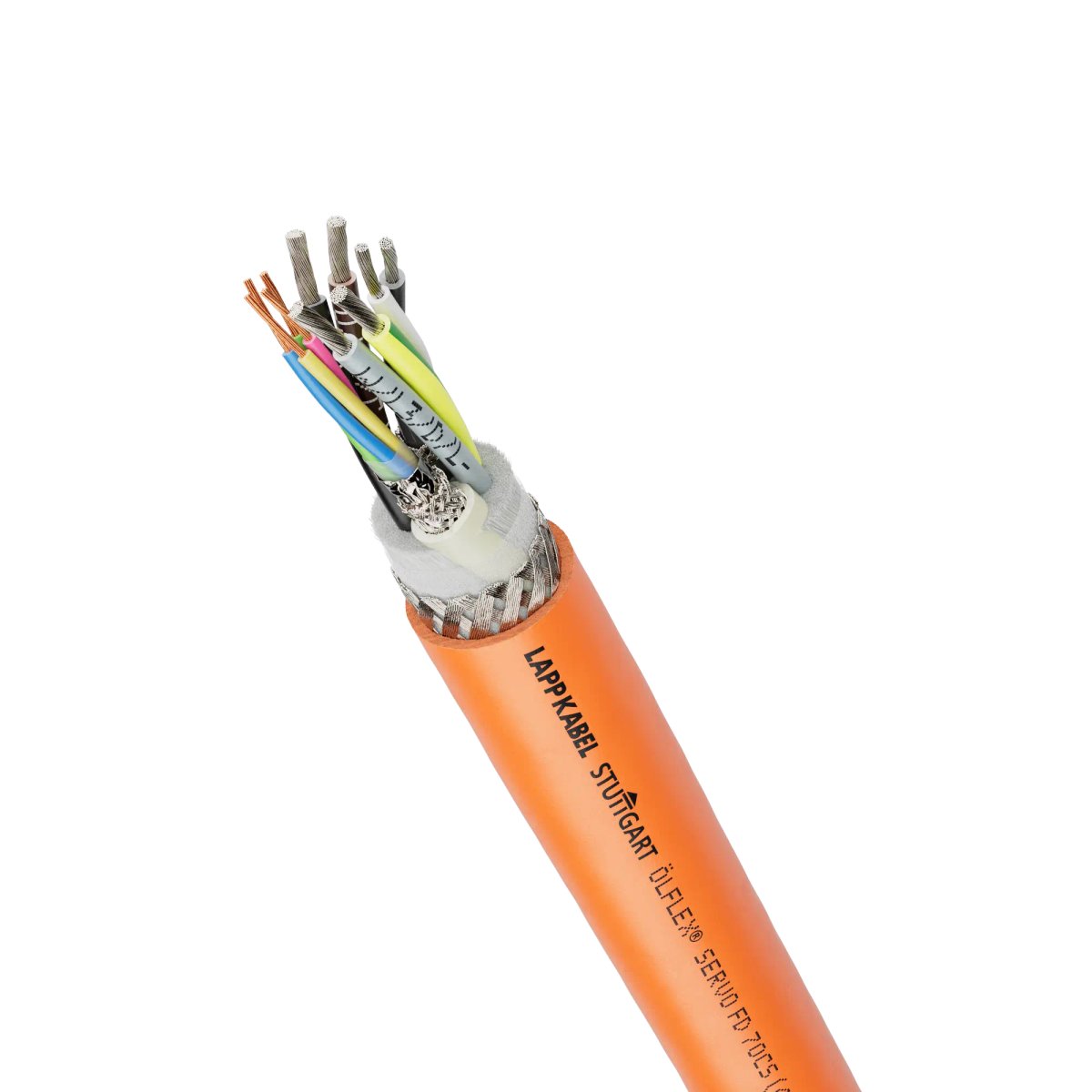

Servo cable; 4G1,5+(2x0,75)+(2x0,30+2x2x0,15); Extended-Line; U0/U: 0,6/1 kV; PUR; Shielded; UL recognized; Cable chainCopied to clipboard
Add to product comparison
Benefits
- Space-saving and weight-saving hybrid cable for simultaneous power supply, signal and data transmission (one-cable technology).
- Available in various cable design variants according to the required interface compatibility.
- Compatible with single-cable technology interfaces from many manufacturers.
- Allows space-saving installation without additional encoder cable. Instead of the encoder cable, integrated signal pairs, signal cores or star quad bundles handle the signal transmission.
- Reduced connection costs due to less cabling work and quick installation of fewer components.
- Highly flexible cable design means maximum product performance.
- Durable cable chain use with long travel distances or high acceleration (LAPP "Extended Line" performance class). This results in longer maintenance cycles, saving costs and increasing the efficiency of machines.
- Low-capacitance core insulation for long transmission paths.
- Ideal protection against electromagnetic interference thanks to copper stranded shielding with a high degree of coverage.
- UL/CSA certification according to technical data enables the product to be used in the North American market.
Application
- For connecting frequency converters and servo motors.
- Especially for environments where electromagnetic compatibility (EMC) is required.
- The cable design allows highly flexible, continuously moving use in moving machine parts and in cable chains, with horizontal travel distances of up to 20 m.
- Can be used in dry and wet conditions, and especially in harsh and oily environments.
- The PUR outer sheath withstands high mechanical loads.
- The PUR outer sheath is resistant to mineral oil-based lubricants and highly resistant to chemicals.
- Suitable for outdoor use.
- Flexible use at temperatures down to -40°C.
