Temperature resistant cables

Cables and single cores for use above +90°C and below -50°C

ÖLFLEX® HEAT are cables and single cores for expanded ambient temperatures. The cables and single cores are available in PVC, silicone, FEP, PTFE and glass fibre. We also offer cross-linked cables and single cores at LAPP.

29 results found

130 Articles
ÖLFLEX® HEAT 125 SC
Single core; 0.5 - 240 mm²; 300/500 V or 450/750 V; electron beam cross-linked polymer compound; -55°C - 125°C; fixed installation; ring/large cardboard; different insulation colours
from
1.535,75 €
(61,43 € / 100 metre)
11 Articles

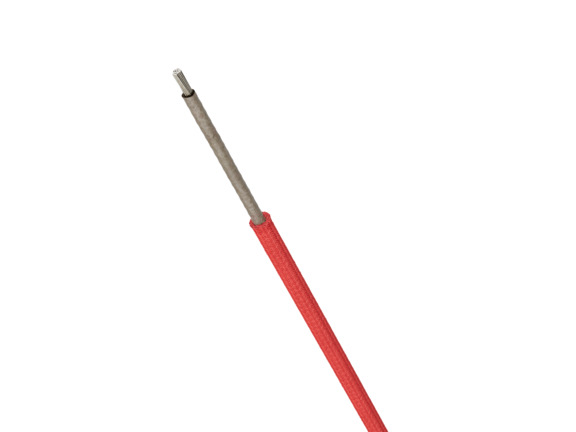

ÖLFLEX® HEAT 1565 SC
Single core; 0.75 - 50 mm²; 300 / 500 V; glass fibre; -195°C - 400°C; fixed installation; red
from
15.514,20 €
(15.514,20 € / 100 metre)
15 Articles
ÖLFLEX® HEAT 105 MC
Power cable; 2 - 7 cores; 0.75 - 1.5 mm²; 300 / 500 V; PVC; colour-coded; -20°C - 90°C; flexible
from
66,54 €
(133,08 € / 100 metre)
29 Articles
ÖLFLEX® HEAT 125 MC
Power cable; 2 - 12 cores; 0.5 - 6 mm²; 300 / 500 V or 450 / 750 V; electron beam cross-linked polymer compound; colour-coded/numbered; -55°C - 125°C; flexible
from
323,74 €
(323,74 € / 100 metre)
109 Articles
ÖLFLEX® HEAT 180 SiF A
Single core; 0.25 - 95 mm²; 0.6 / 1 kV; silicone; -50°C - 180°C; UL AWM; fixed installation; different insulation colours
from
74,43 €
(74,43 € / 100 metre)
38 Articles
ÖLFLEX® HEAT 180 SiHF
Power cable; 2 - 24 cores; 0.5 - 16 mm²; 300 / 500 V; silicone; colour-coded/numbered; -50°C - 180°C; flexible
from
299,08 €
(299,08 € / 100 metre)
27 Articles
ÖLFLEX® HEAT 180 EWKF
Power cable; 2 - 24 cores; 0.75 - 6 mm²; 300 / 500 V; silicone; colour-coded/numbered; -50°C - 180°C; flexible; mechanical resistance
from
660,01 €
(660,01 € / 100 metre)
28 Articles
ÖLFLEX® HEAT 180 GLS
Power cable; 2 - 7 cores; 0.75 - 16 mm²; 300 / 500 V; silicone; colour-coded/numbered; armoured; -50°C - 180°C; flexible
from
1.179,03 €
(1.179,03 € / 100 metre)
29 Articles
ÖLFLEX® HEAT 180 MS
Power cable; 2 - 25 cores; 0.5 - 6 mm²; 300 / 500 V; silicone; colour-coded/numbered; -60°C - 180°C; UL AWM; cUL AWM; flexible
from
376,05 €
(376,05 € / 100 metre)
25 Articles
ÖLFLEX® HEAT 180 C MS
Power cable; 2 - 25 cores; 0.5 - 10 mm²; 300 / 500 V; silicone; colour-coded/numbered; screened; -60°C - 180°C; UL-listed; flexible
from
1.622,77 €
(1.622,77 € / 100 metre)
12 Articles
ÖLFLEX® HEAT 180 SiF/GL
Single core; 0.5 - 50 mm²; 300 / 500 V; silicone; -50°C - 180°C; fixed installation; white
from
79,56 €
(79,56 € / 100 metre)
2 Articles
ÖLFLEX® HEAT 180 SiZ
Twin conductor; 2 cores; 0.5 - 0.75 mm²; 300 / 500 V; silicone; -50°C - 180°C; fixed installation; red
from
133,33 €
(133,33 € / 100 metre)
