Pressure compensation elements

Breathable with membrane technology

The pressure compensation elements from LAPP are made from polyamide or stainless steel and have a special membrane that is air-permeable and waterproof. Pressure compensation elements act as a ventilation system for the housing and thus prevent the formation of condensation.

Categories

Cable glands

Filter

Reset

Filter

Filter

Reset

  • General information
    • Product type
      • Pressure compensation element

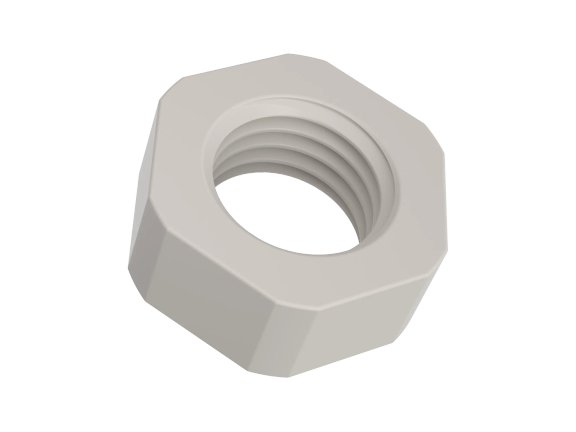

      • Lock nut

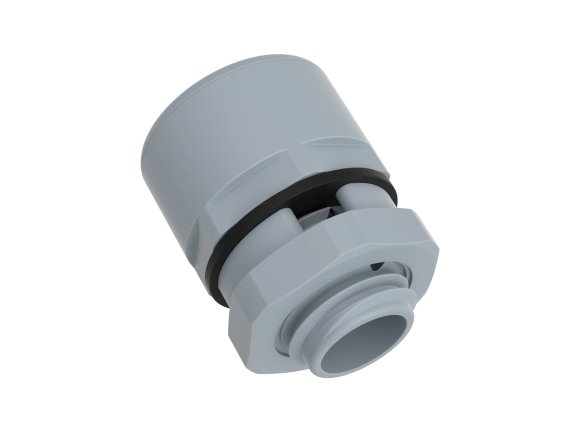

      • Drainage element
    • Brand
      • SKINDICHT®
    • Delivery with lock nut
      • No
      • Yes
    • Delivery with O-ring
      • Yes
    • Installation type
      • in threaded borehole
      • with lock nut
    • Packaging type
      • Bag
    • Packaging unit (PU)
      • 25.0
      • 10.0
    • Scope of delivery
      • including lock nut
  • Product design
    • Body material
      • Polyamide
      • Stainless steel
    • Body material, short form
      • PA
      • VA
    • Cable gland design
      • Straight
    • Color
      • black
      • light gray
      • silver gray
    • EMC shielding
      • No
    • O-ring material
      • Ethylene propylene diene rubber
      • Acrylonitrile butadiene rubber
    • O-ring material, short form
      • EPDM
      • NBR
    • RAL color
      • RAL 9005
      • RAL 7035
      • RAL 7001
    • Seal type
      • Flat seal
      • O-ring
    • Sealing material
      • Acrylonitrile butadiene rubber
    • Thread increase
      • 1,5
      • 0,75
      • 1
    • Thread length
      • 10.0 mm
      • 5.0 mm
      • 12.0 mm
    • Thread size
      • M 12
      • M 6
      • M 8
    • Thread standard
      • DIN EN 60423
    • Thread type
      • Metric
    • Total length
      • 16.15 mm
      • 29.5 mm
      • 21.0 mm
      • 17.6 mm
    • Wrench size
      • 17.0 mm
      • 10.0 mm
      • 12.0 mm
  • Product features
    • Characteristics
      • Oil-resistant
      • Flame-retardant
      • UV-resistant
      • Halogen-free
      • Chemical resistant
      • Corrosion-resistant
      • Salt water resistant
    • Air volume (max.)_
      • 0.1 l/min
      • 0.2 l/min
      • 4.2 l/min
      • 0.4 l/min
      • 0.8 l/min
      • 2.4 l/min
    • IP protection rating
      • IP 66
      • IP 69
      • IP 67
      • IP 56
      • IP 68
    • Temperature (max.)
      • 100.0 °C
      • 105.0 °C
    • Temperature (min.)
      • -40.0 °C
      • -20.0 °C
  • Certifications and standards
    • Certificates
      • CE marking
      • UL recognized
Results (4)
