Power connectors

Power connectors with a high reserve

The EPIC® POWER circular connectors are suitable for servo drives and the power supply. The power connectors are characterized by a high reserve and are available as M12, M17, LS 1 (M23), LS 1.5 (M40) and LS 3 (M58). The integrated EMC conduit connectors have strain relief and seal perfectly. The high-quality sealing material provides good chemical protection.

Filter

Reset

Filter

Reset all
Filter

Filter

Reset

Filter

Reset all
  • Electrical parameters
    • Rated voltage
      • 600 V AC rms / DC according to UL
      • 600 V AC rms / DC according to CSA
      • 630 V AC rms / DC according to IEC
      • 630 V AC rms according to IEC
      • 250 V AC rms / DC according to IEC
    • Rated current
      • 25 A according to IEC
      • 12 A according to CSA
      • 12 A according to IEC
      • 12 A according to UL
      • 25 A according to CSA
      • 25 A according to UL
      • 22 A according to CSA
      • 22 A according to UL
      • 20 A according to IEC
      • 26 A according to CSA
      • 26 A according to UL
      • 70 A according to IEC
  • Product design
    • Connector format
      • M 23 power
      • M 12 power
      • M 40
      • M 17 power
    • Coding type
      • S-coded
    • Number of contacts
      • 3+PE+4
      • 5+PE
      • 3+PE
      • 3+PE+2
    • Connector housing design
      • Straight
      • Angled
    • Contact variant
      • Socket
      • Pin
    • Conductor connection type
      • Crimp termination
      • Screw connection
    • Min. connectable conductor cross-section (mm2) (in2)
      • 0.75 mm²
      • 0.25 mm²
    • Max. connectable conductor cross-section (mm2) (in2)
      • 1.5 mm²
      • 2.5 mm²
    • Min. connectable conductor cross-section AWG
      • 26 AWG
      • 22 AWG
      • 18 AWG
      • 12 AWG
    • Max. connectable conductor cross-section AWG
      • 14 AWG
      • 12 AWG
      • 8 AWG
      • 16 AWG
    • Min. cable clamping range
      • 7.5 mm
      • 14.0 mm
      • 10.5 mm
      • 8.5 mm
      • 8.0 mm
      • 20.5 mm
      • 3.5 mm
    • Max. cable clamping range
      • 15.5 mm
      • 17.0 mm
      • 11.0 mm
      • 10.0 mm
      • 20.5 mm
      • 26.5 mm
  • Product features
    • Characteristics
      • Corrosion-resistant
      • Impact-resistant
      • Vibration protection
    • IP protection class plugged in
      • IP 68 - 1m (10h)
      • IP 67
  • Certifications and standards
    • Certificates
      • CE marking
      • UKCA marked
      • UR recognized
      • cUR recognized
      • VDE certified
      • CSA certified
    • Product standard according to IEC
      • IEC 61984
      • IEC 61076-2-111
Results (20)
EPIC® POWER LS1 D6
5 articles
EPIC® POWER LS1 D6
Circular connector; M 23 power; socket; number of contacts: 5+PE / 3+PE+4; round housing; for cross-section: 0.5 mm² - 4 mm²; clamping range: 7.5 mm - 17 mm
Register for price
EPIC® POWER M12 630V Cable connector
1 articles
EPIC® POWER M12 630V Cable connector
Circular connector; M 12 power; S-coded; socket; number of contacts: 3+PE; round housing; for cross-section: 0.75 mm² - 1.5 mm²; clamping range: 8 mm - 10 mm (0.31 in - 0.39 in)
Register for price
EPIC® POWER M12 630V Panel base
4 articles
EPIC® POWER M12 630V Panel base
Circular connector; M 12 power; S-coded; pin / socket; number of contacts: 3+PE; panel-mount base; for cross-section: 0.75 mm² - 1.5 mm²
Register for price
EPIC® POWER LS1 D6 short
2 articles
EPIC® POWER LS1 D6 short
Circular connector; M 23 power; socket; number of contacts: 5+PE / 3+PE+4; round housing; for cross-section: 0.5 mm² - 4 mm²; clamping range: 7.5 mm - 15.5 mm
Register for price
EPIC® POWER LS1 A1
2 articles
EPIC® POWER LS1 A1
Circular connector; M 23 power; pin; number of contacts 5+PE / 3+PE+4; panel-mount base
Register for price
EPIC® POWER M17 F6
1 articles
EPIC® POWER M17 F6
Circular connector; M 17 power; pin / socket; number of contacts: 3+PE / 5+PE / 6+PE / 7+PE / 3+PE+5; cable coupler hood; for cross-section: 0.06 mm² - 2.5 mm²
Register for price
EPIC® POWER M12 630V Cable coupler
2 articles
EPIC® POWER M12 630V Cable coupler
Circular connector; M 12 power; S-coded; pin; number of contacts: 3+PE; round housing; for cross-section: 0.75 mm² - 1.5 mm²; clamping range: 8 mm - 10 mm (0.31 in - 0.39 in)
Register for price
EPIC® POWER LS1 A3
2 articles
EPIC® POWER LS1 A3
Circular connector; M 23 power; pin; number of contacts: 5+PE / 3+PE+4; round housing;
Register for price
EPIC® POWER LS1 F6
4 articles
EPIC® POWER LS1 F6
Circular connector; M 23 power; pin; number of contacts: 5+PE / 3+PE+4; round housing; for cross-section: 0.5 mm² - 4 mm²; clamping range: 7.5 mm - 17 mm
Register for price
EPIC® POWER LS1 G5
2 articles
EPIC® POWER LS1 G5
Circular connector; M 23 power; pin / socket; number of contacts: 5+PE 3+PE+4; for cross-section: 0.5 mm² - 2.5 mm²
Register for price

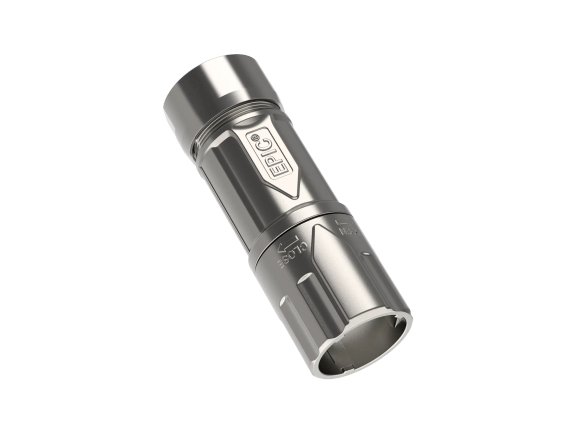

EPIC® POWER M23 F6 TWIST
6 articles
EPIC® POWER M23 F6 TWIST
Circular connector; M 23 power; coupling connector, TWIST locking
Register for price

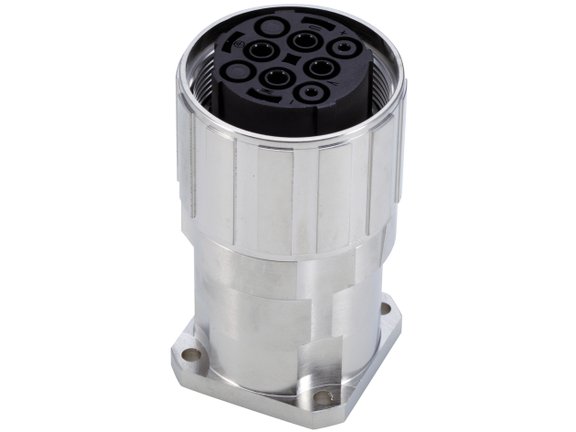

EPIC® POWER LS1.5 A3
1 articles
EPIC® POWER LS1.5 A3
Circular connector; M 40; pin; number of contacts: 3+PE+2 / 3+PE+4; round housing
Register for price
