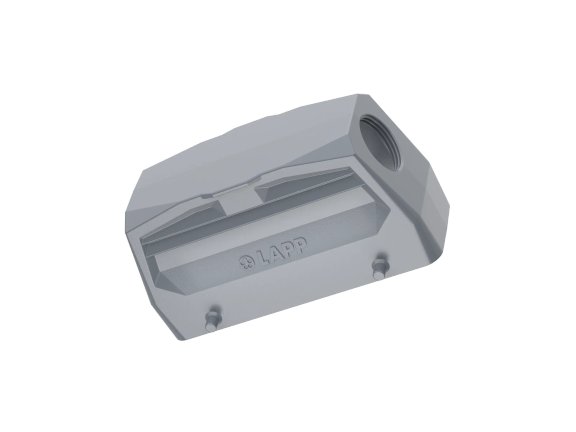

Rectangular connector housing

Robust housing for durable connections

EPIC® rectangular connector housings protect the core of the rectangular connector, namely its inserts and contacts. They ensure that a rectangular connector is stable and resistant. This makes it ideal for industrial applications. Our product portfolio comprises two performance classes: EPIC® standard housings and the corrosion-resistant EPIC® ULTRA housings. Discover the housing that is the perfect match for your rectangular connectors!
