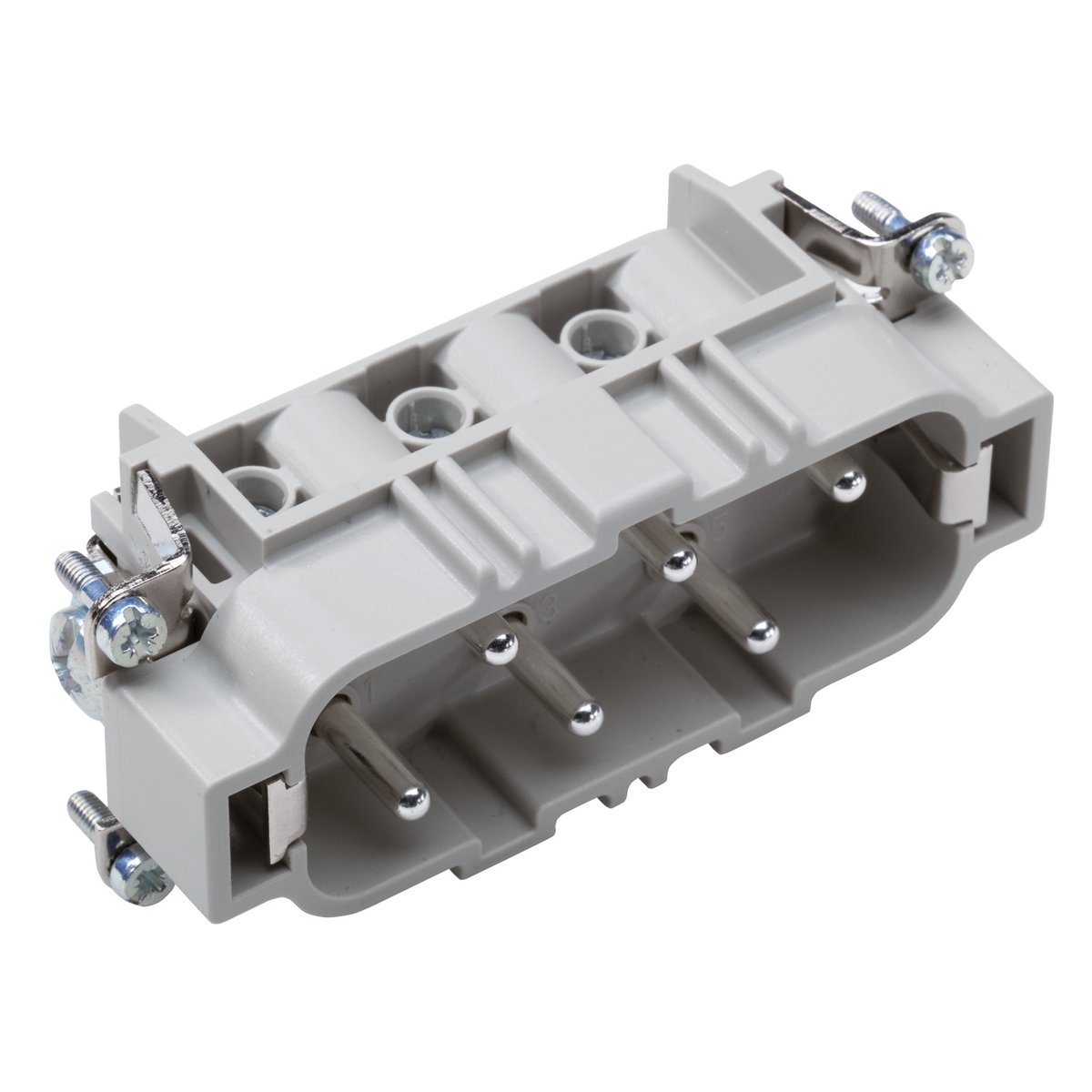

Insert with screw connection Pin; Number of contacts: 6+PE; Design size: 16B; 500 V AC rms / DC according to IEC; 35 A according to IEC; For cross-section (min./max.): 0.5mm² - 6mm²; Contacts included; PolycarbonateCopied to clipboard
High power up to 35 A despite extremely space-saving design for very small devices.
Easy to service screw connection enables assembly without special tools.
Can be used in railway vehicles in accordance with standards for selected articles (reaction to fire test in accordance with DIN EN 45545-2:2016-02, requirement sets R22 and R23, hazard levels HL1, HL2 and HL3).
Made of robust plastic (flammability class V-0 according to the UL94 testing procedure for the flammability of plastics).
Application
For connecting devices and machines to a power supply in various applications
Suitable for wiring inside control cabinets.
For use with the rectangular connector housings of the EPIC® H-B series.
