Benefits

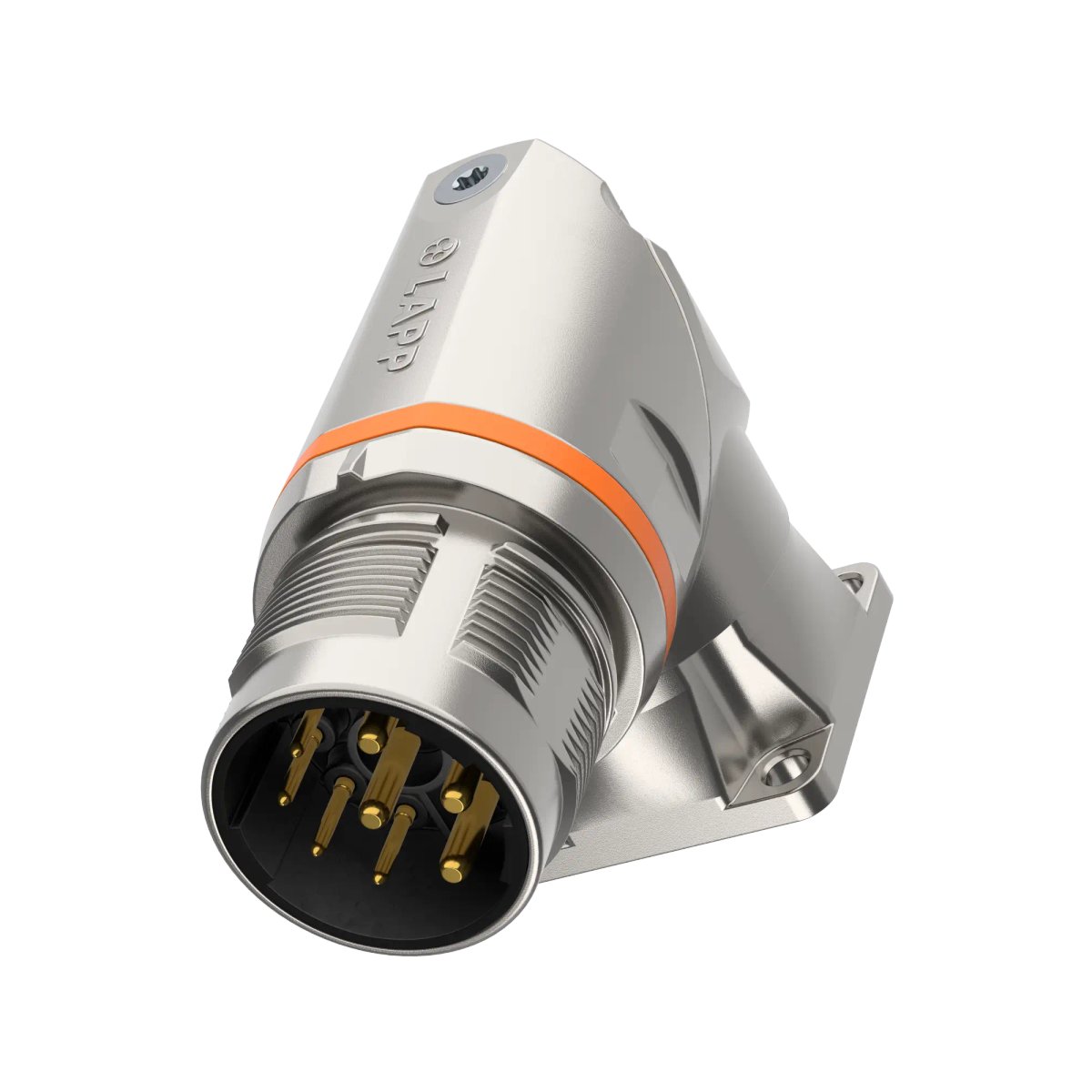

- Rotatable outlet on the motor allows an adjustable, defined outlet angle and offers maximum flexibility when connecting.
- Innovative design allows high voltages up to 1000 V.
- Thanks to its reinforced wall thickness, the connection is mechanically robust, insensitive to shock and vibration and therefore extremely reliable.
- Quickflex quick-locking system enables easy connection to the counterpart. Locking takes place after just one eighth of a turn. Quickflex can be plugged in with market standard plug connectors.
- When connected, protection class IP 68 and IP 69K can be achieved. The Clean Design connection is therefore easy to clean.
- Connection can be installed in conjunction with the EPIC® M23P Pin inserts HV for voltages up to 630 V at an altitude of up to 5000 m above sea level.
- Stability thanks to die-cast zinc metal housing.
- Variants with different pole configurations available.
- Variants with chromated surface available for subsequent painting.
Application
- For connecting devices and machines to a power supply in various applications, including signal transmission.
- Typical areas of application are electric motors and servo drives.
- Especially for environments where electromagnetic compatibility (EMC) is required.
- For use with the EPIC® M23P series marking rings.
