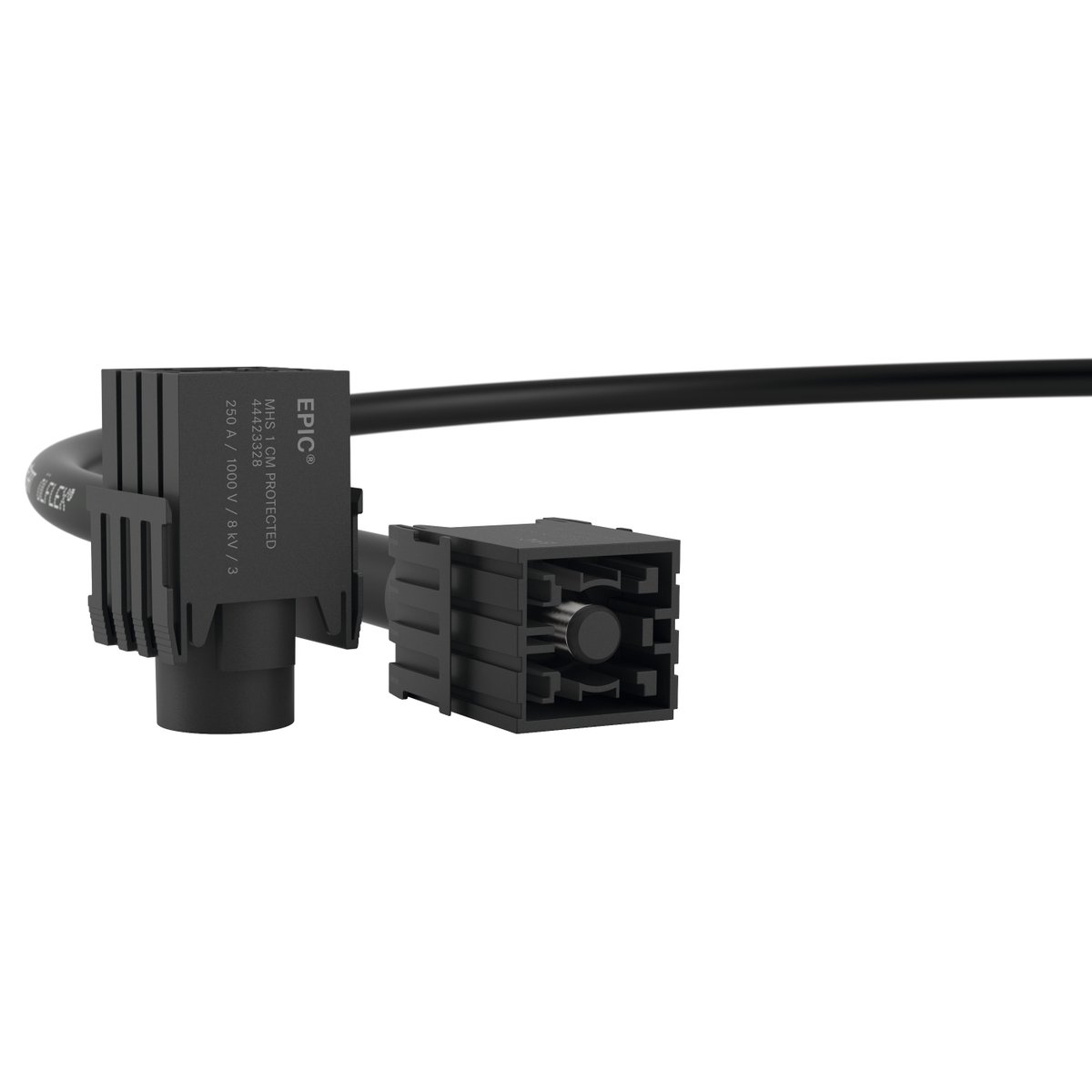

MH module modular system; Crimp termination; Number of contacts: 1; Slots required: 2; For cross-section (min./max.): 25mm² - 95mm²; 1000 V AC rms / DC according to IEC; 250 A according to IECCopied to clipboard
High-voltage module with 1 power contact for very high power supplies of up to 250 A.
Connectors with modular configurations can be connected to market-standard connectors.
Crimp termination creates a vibration-proof connection, provides maximum contact protection between the contact and cable and is suitable for automated assembly.
Different crimp contacts available for different conductor cross-sections.
Locks effortlessly into the fixed EPIC® MH multi-frame with an audible click. Much easier assembly than hinged and sliding frames.
Items available with or without touch protection. Where article names have the addition "protected," touch protection is integrated into the pin module for maximum safety. A cap for the crimp contact and additional grooves inside the module prevent the user from getting into the hazardous area.
Application
For manufacturing a modular connector insert.
For connecting devices and machines to a power supply in various applications
Typical areas of application include energy supply systems, battery charging systems, very large motors and heating systems.
Compliant with standards for use in railway vehicles (fire behavior test according to DIN EN 45545-2:2016-02, requirements sets R22 and R23, hazard levels HL1, HL2 and HL3).
