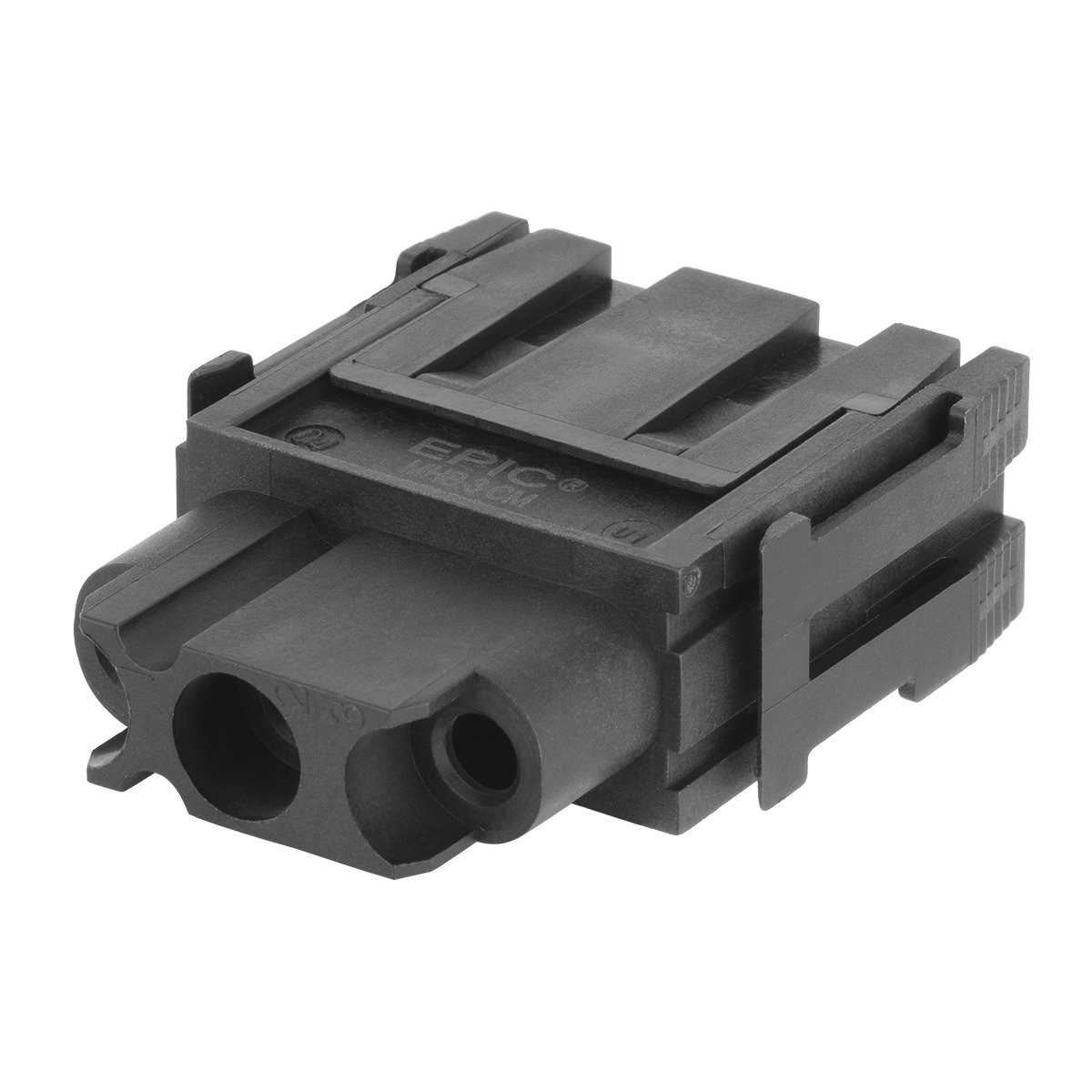

MH module modular system; Crimp termination; Number of contacts: 3; Required slots: 1; For cross-section (min./max.): 1.5mm² - 10mm²; 400 V AC rms / DC according to IEC; 40 A according to IECCopied to clipboard
Add to product comparison
Benefits
- Module with 3 power contacts for power supply up to 40 A.
- Connectors with modular configurations can be connected to market-standard connectors.
- Crimp termination creates a vibration-proof connection, provides maximum contact protection between the contact and cable and is suitable for automated assembly.
- Different crimp contacts available for different conductor cross-sections.
- Locks effortlessly into the fixed EPIC® MH multi-frame with an audible click. Much easier assembly than hinged and sliding frames.
- UL certification according to technical data enables the product to be used on the North American market.
Application
- For manufacturing a modular connector insert.
- For connecting devices and machines to a power supply in various applications
- Compliant with standards for use in railway vehicles (fire behavior test according to DIN EN 45545-2:2016-02, requirements sets R22 and R23, hazard levels HL1, HL2 and HL3).
