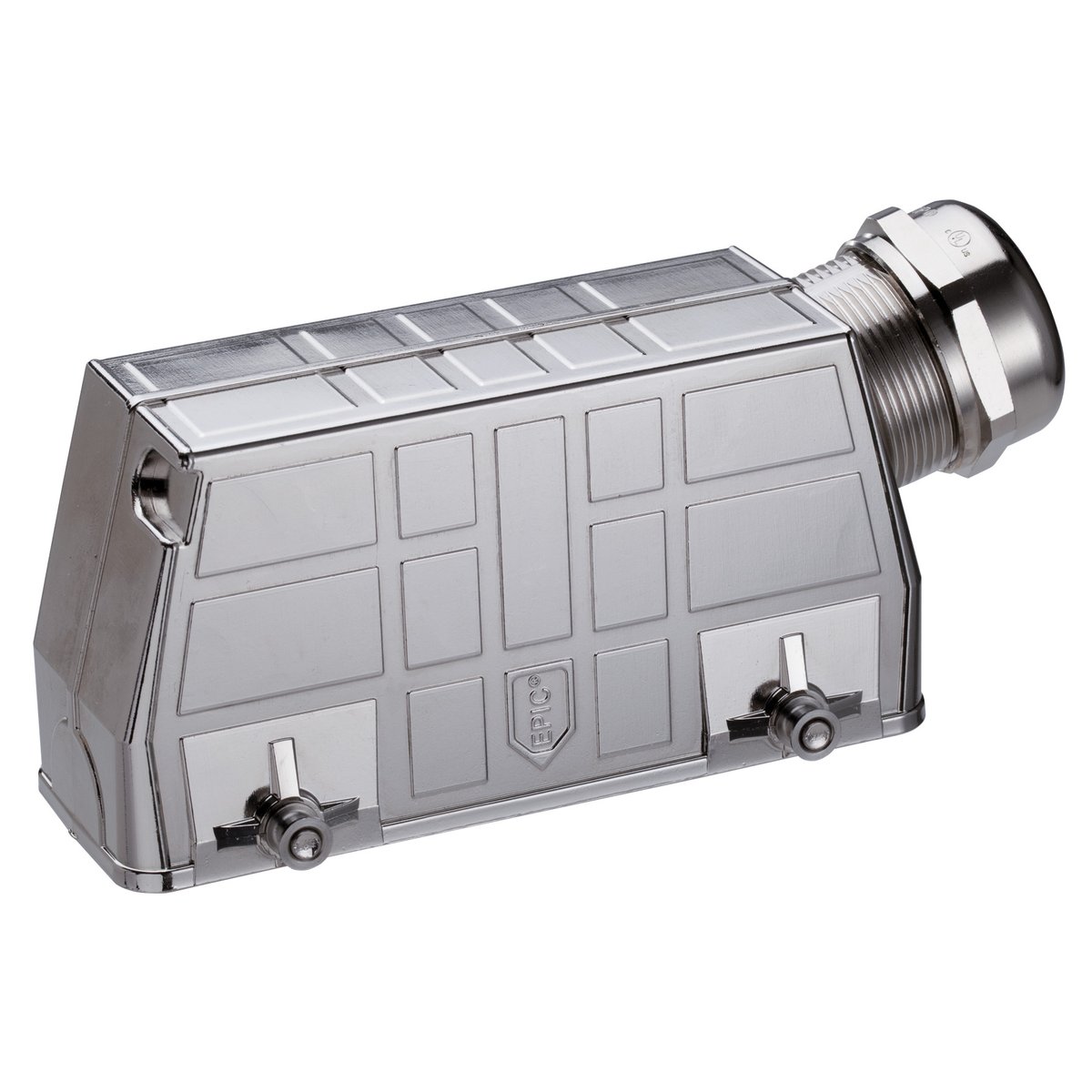

EPIC® ULTRA H-B 24 TS QB

Benefits

• The arrow is a new design element on the housing surface and makes it easy to find and easy to connect in tight spaces and possibly poorly visible areas of application.
• VDE-tested quality.
• UL certification according to technical data enables the product to be used on the North American market.
• The hood can be connected with many standard housings (mount base, surface-mount base or cable coupler hood).
• With side cable entry for orderly cable laying and to prevent the cable from bending too much.
• The integrated brass SKINTOP® cable gland is used for sealing and strain relief cable entries. Compared to housings where the cable gland is added separately, the overall size of the housing is more space-saving.
• For article names with the addition “BRUSH,” the integrated cable gland is supplemented by our innovative SKINTOP® brass brush, which enables 360° contacting of the copper braided shielding and thus enables the interference signals to be deflected even more effectively. Brush wires enable easier assembly of the connector and obtain the gap-free 360° coverage of the copper braided shielding.
• The housing variants allow different clamping ranges (7 - 15 mm (0.27 in - 0.58 in) or 11 - 21 mm (0.43-0.82 in)).
• The locking is performed using a stainless steel double lever on the counter-housing.
• Meets protection class IP 65 when locked.
• Protection class classified according to NEMA 250 and tested pursuant to UL50E.
