Brass cable glands

For mechanically demanding or EMC applications

With the SKINTOP® brass cable glands from LAPP, your cable is affixed, centered, hermetically sealed and has optimum strain relief. Especially in environments where the product is subject to high chemical and mechanical stress. With us you will find halogen-free, extra strain relief, cold-resistant cable glands as well as cable conduits with EMC protection, for ATEX areas and those with permanent bending protection.

Categories

Cable glands
Single entries
Show all
Brass
  • Cable gland
  • Angled cable gland
  • Cable gland with bending protection
  • Flat cable gland
  • Flat cable entry
  • Rolling Stock
  • Process Industry
  • Construction Machinery
  • Ships & boats
  • Robotics
  • Energy
  • Heating, Ventilation, Air Conditioning & Refrigeration
  • Healthcare & Pharma
  • Agricultural & Farm Machinery
  • Assembly Machines
  • Automotive
  • Food & Beverage
  • Intralogistics & Material handling
  • Machine Tools
  • Packaging
  • Lifts & Elevators
  • M 20
  • M 25
  • M 32
  • M 16
  • M 40
  • M 50
  • PG 21
  • M 12
  • PG 13,5
  • PG 16
  • M 63
  • PG 11
  • PG 9
  • PG 29
  • PG 7
  • PG 36
  • PG 42
  • NPT 1"
  • M 72
  • NPT 1 1/4"
  • NPT 1/2"
  • NPT 3/4"
  • NPT 3/8"
  • PG 48
  • M 110
  • M 75
  • NPT 1 1/2"
  • NPT 1/4"
  • NPT 2"
  • M 10
  • M 6
  • M 8
  • M 80
  • M 56
  • M 90
  • M 24
  • Metric
  • PG
  • NPT
  • Oil resistant
  • UV-resistant
  • Strain relief
  • Impact proof
  • Flame-retardant
  • Chemical resistant
  • Vibration protection
  • corrosion resistant
  • Halogenfree
  • Suitable for EX-applications
  • salt water resistant
  • lead free
  • CE marking
  • UL listed
  • cUL listed
  • DNV-certified
  • VDE certified
  • UL recognized
  • cUR recognized
  • Tested for fire protection for railway vehicles
  • CCCex-certified
Filter

Filter

Reset everything
  • General information
    • End of sales article
      • No
    • New products
      • No
      • Yes
    • Product type
      • Cable gland
      • Angled cable gland
      • Cable gland with bending protection
      • Flat cable gland
      • Flat cable entry
    • Industry segment
      • Rolling Stock
      • Process Industry
      • Construction Machinery
      • Ships & boats
      • Robotics
      • Energy
      • Heating, Ventilation, Air Conditioning & Refrigeration
      • Healthcare & Pharma
      • Agricultural & Farm Machinery
      • Assembly Machines
      • Automotive
      • Food & Beverage
      • Intralogistics & Material handling
      • Machine Tools
      • Packaging
      • Lifts & Elevators
  • Product design
    • Number of cable entries
      • 1 pc.
    • Cable gland design
      • Straight
      • 90° angle
      • Flange
      • Rectangular
    • Wrench size 1
      • 0.945 in
      • 0.866 in
      • 0.787 in
      • 1.181 in
      • 1.142 in
      • 1.417 in
      • 1.772 in
      • 1.575 in
      • 0.63 in
      • 1.969 in
      • 2.638 in
      • 2.559 in
      • 0.551 in
      • 0.669 in
      • 0.709 in
      • 2.126 in
      • 2.244 in
      • 2.52 in
      • 2.756 in
      • 2.953 in
      • 0.591 in
      • 2.165 in
      • 3.74 in
      • 0.354 in
      • 0.433 in
      • 0.512 in
      • 1.614 in
      • 3.346 in
      • 1.063 in
      • 1.102 in
      • 1.339 in
      • 2.598 in
      • 5.315 in
      • 0.827 in
      • 0.906 in
      • 1.024 in
      • 1.26 in
      • 1.457 in
      • 1.654 in
      • 1.85 in
      • 2.362 in
      • 4.528 in
    • Flat cable width (min.)
      • 0.0 in
      • 1.339 in
      • 0.354 in
      • 0.551 in
      • 0.945 in
      • 1.142 in
      • 0.433 in
      • 0.591 in
      • 0.709 in
      • 1.024 in
    • Flat cable width (max.)
      • 0.63 in
      • 0.787 in
      • 1.575 in
      • 1.929 in
      • 1.969 in
      • 2.756 in
      • 0.591 in
      • 0.827 in
      • 1.063 in
      • 1.102 in
      • 1.181 in
      • 1.299 in
      • 1.339 in
      • 1.732 in
      • 1.772 in
      • 2.48 in
    • Min. flat cable height
      • 0.0 in
      • 0.118 in
      • 0.197 in
      • 0.157 in
      • 0.177 in
      • 0.276 in
    • Flat cable height (max.)
      • 0.453 in
      • 0.472 in
      • 0.315 in
      • 0.197 in
      • 0.591 in
      • 0.177 in
      • 0.236 in
      • 0.276 in
      • 0.354 in
      • 0.433 in
      • 0.512 in
    • Min. clamping range
      • 0.276 in
      • 0.433 in
      • 0.748 in
      • 0.354 in
      • 1.063 in
      • 0.315 in
      • 0.177 in
      • 0.197 in
      • 0.236 in
      • 0.079 in
      • 0.138 in
      • 0.157 in
      • 1.339 in
      • 0.335 in
      • 0.512 in
      • 0.472 in
      • 0.709 in
      • 0.217 in
      • 0.591 in
      • 0.63 in
      • 0.118 in
      • 0.268 in
      • 0.295 in
      • 0.425 in
      • 0.551 in
      • 0.906 in
      • 0.689 in
      • 0.945 in
      • 1.102 in
      • 1.181 in
      • 0.394 in
      • 0.866 in
      • 1.26 in
      • 1.732 in
      • 0.228 in
      • 0.256 in
      • 0.531 in
      • 0.669 in
      • 0.189 in
      • 0.622 in
      • 1.417 in
      • 0.039 in
      • 0.15 in
      • 0.413 in
      • 0.453 in
      • 0.492 in
      • 0.543 in
      • 0.787 in
      • 0.827 in
      • 1.024 in
      • 1.22 in
      • 1.378 in
      • 1.614 in
      • 1.89 in
      • 2.087 in
      • 2.283 in
      • 2.441 in
      • 2.598 in
      • 2.992 in
      • 3.386 in
      • 0.272 in
      • 0.374 in
      • 0.61 in
      • 0.768 in
      • 0.925 in
      • 0.984 in
      • 1.142 in
      • 1.299 in
      • 1.398 in
      • 1.457 in
      • 1.496 in
      • 1.535 in
      • 1.594 in
      • 2.047 in
      • 2.205 in
    • Max. clamping range
      • 0.512 in
      • 0.394 in
      • 0.276 in
      • 0.669 in
      • 1.378 in
      • 0.787 in
      • 0.827 in
      • 1.102 in
      • 0.197 in
      • 0.472 in
      • 0.63 in
      • 1.063 in
      • 0.425 in
      • 0.591 in
      • 0.354 in
      • 0.315 in
      • 0.346 in
      • 1.772 in
      • 0.504 in
      • 0.268 in
      • 0.709 in
      • 0.906 in
      • 0.984 in
      • 0.374 in
      • 1.339 in
      • 0.256 in
      • 0.583 in
      • 0.622 in
      • 0.701 in
      • 1.22 in
      • 0.228 in
      • 0.433 in
      • 0.78 in
      • 1.142 in
      • 1.732 in
      • 2.165 in
      • 0.236 in
      • 0.551 in
      • 1.024 in
      • 1.26 in
      • 1.299 in
      • 1.535 in
      • 1.673 in
      • 0.118 in
      • 0.189 in
      • 0.492 in
      • 0.531 in
      • 0.65 in
      • 0.748 in
      • 0.858 in
      • 1.181 in
      • 1.496 in
      • 1.85 in
      • 0.217 in
      • 0.689 in
      • 0.937 in
      • 1.016 in
      • 1.358 in
      • 1.575 in
      • 1.752 in
      • 2.067 in
      • 2.48 in
      • 2.598 in
      • 2.677 in
      • 3.071 in
      • 3.465 in
      • 3.858 in
      • 0.35 in
      • 0.925 in
      • 1.516 in
      • 1.594 in
      • 1.634 in
      • 1.969 in
      • 2.224 in
      • 2.323 in
    • EMC shielding
      • No
      • Yes
    • Body material
      • Brass
      • Zinc alloy
      • Aluminum
    • Colour description
      • metal
      • silver
    • Thread size
      • M 20
      • M 25
      • M 32
      • M 16
      • M 40
      • M 50
      • PG 21
      • M 12
      • PG 13,5
      • PG 16
      • M 63
      • PG 11
      • PG 9
      • PG 29
      • PG 7
      • PG 36
      • PG 42
      • NPT 1"
      • M 72
      • NPT 1 1/4"
      • NPT 1/2"
      • NPT 3/4"
      • NPT 3/8"
      • PG 48
      • M 110
      • M 75
      • NPT 1 1/2"
      • NPT 1/4"
      • NPT 2"
      • M 10
      • M 6
      • M 8
      • M 80
      • M 56
      • M 90
      • M 24
    • Thread type
      • Metric
      • PG
      • NPT
  • Product features
    • NEMA classification type
      • Type 1
      • Type 12
      • Type 4x
      • Type 6
      • Type 2
    • Temperature
      —
    • IP protection rating
      • IP 68 - 10 g/cm² (30 min)
      • IP 65
      • IP 68 - 5 g/cm² (30 min)
      • IP 66
      • IP 69
      • IP 68 - 10 g/cm²
      • IP 68 - 3 g/cm² (30 min)
      • IP 55
      • IP 54
      • IP 67
      • IP 68
      • IP 20
      • IP 56
      • IP 68 - 1 g/cm² (30 min)
    • Product features
      • Oil resistant
      • UV-resistant
      • Strain relief
      • Impact proof
      • Flame-retardant
      • Chemical resistant
      • Vibration protection
      • corrosion resistant
      • Halogenfree
      • Suitable for EX-applications
      • salt water resistant
      • lead free
  • Certifications and standards
    • Certifications
      • CE marking
      • UL listed
      • cUL listed
      • DNV-certified
      • VDE certified
      • UL recognized
      • cUR recognized
      • Tested for fire protection for railway vehicles
      • CCCex-certified

Results

(64)

SKINTOP® MS-SC-M / SKINTOP® MS-SC-M-XL
20 Article
Login for price
SKINTOP® MS-M / SKINTOP® MSR-M
32 Article
Login for price
SKINDICHT® SHVE-M ATEX
1 Article
Login for price
SKINTOP® MS-M BRUSH / SKINTOP® MS-M BRUSH XL
19 Article
Login for price
SKINTOP® MS NPT / SKINTOP® MSR NPT
16 Article
Login for price
SKINDICHT® MINI NBR
3 Article
Login for price
SKINTOP® MS-SC /SKINTOP® MS-SC-XL
13 Article
Login for price
SKINTOP® MS-M-XL / SKINTOP® MSR-M-XL
14 Article
Login for price
SKINDICHT® FL
5 Article
Login for price
SKINDICHT® RWV-M
6 Article
Login for price
SKINTOP® MS-M ATEX BRUSH
8 Article
Login for price

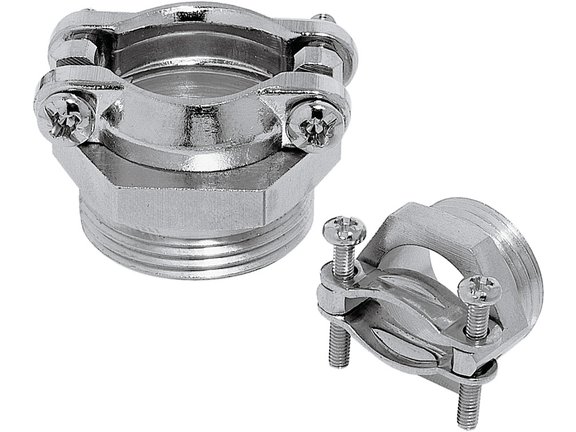

SKINDICHT® SK
6 Article
Login for price

What is a brass cable gland?


In general, all cable glands, also known as cable bushings or cable entry systems, are used to insert a cable or insulated conductor into a housing. The cable gland meets the functional requirements for sealing and fastening and strain relief.

Cable glands

Brass cable glands are a type of metal cable glands. Brass is a copper-zinc alloy (CuZnX) with a zinc content of up to 40%. Other metals may also be added in small quantities. Brass offers good chemical resistance and particular mechanical stability, which is why it is very popular in the manufacture of cable glands.

The majority of LAPP brass cable glands are nickel-plated brass, i.e. they have an additional nickel coating. This is because nickel, which is also a metal, is corrosion-resistant and wear-resistant, thus protecting the brass body from many environmental influences and thus impairments of its function. The corrosion protection effect is confirmed by the salt spray test according to DIN EN ISO 9227, which is used by the brass components of the LAPP cable glands.

Which different brass cable glands are available at LAPP?


Designation: At LAPP, we sell our brass cable glands under the SKINTOP® product brand and the SKINDICHT® sub-brand.

Metal composition: The vast majority of our products within the product group "Brass cable glands" are made of nickel-plated brass as standard. Our portfolio also includes lead-free, nickel-plated brass cable glands.

Product differentiation according to properties

For use in public buildings with high personal and material value. The green seals are completely halogen-free.

Identifiable by HF in the name, e.g. SKINTOP® MS-HF-M.

SKINTOP® MS-HF-M
SKINTOP® MS-M BRUSH

Ensure optimum contact with the cable’s braid shield and keep external interfering signals away.

Identifiable by BRUSH or SC in the name, e.g. SKINTOP® MS-M BRUSH or SKINTOP®MS-SC-M.

SKINTOP® MS-M BRUSH

For extra high strain relief for your cables.

SKINTOP® GRIP-M, SKINDICHT® SKZ-M, SKINDICHT® SHZ-M

SKINTOP® BRUSH ADD-ON

For use at extreme sub-zero temperatures. Identifiable by COLD in the name, e.g. SKINTOP® COLD.

SKINTOP® COLD
SKINDICHT® SVF-M

With original sealing insert for high sealing of various flat cable contours (e.g. angular or round).SKINTOP® FLAT (patented sealing insert) SKINDICHT® SVF-M.

SKINDICHT® SVF-M

For use in devices, machines and systems of the “Enhanced Safety” ignition protection type ("e").

Identifiable by ATEX in the name, e.g. SKINTOP® MS-M ATEX.

SKINTOP® MS-M ATEX

For moving applications with high demands on mechanical stability.

SKINTOP® BS-M METAL, SKINDICHT® SR-M, SKINDICHT® SR-SV-M.

Its very small size makes it ideal for applications with limited space, to achieve a high packing density. Identifiable by MINI in the name, e.g. SKINDICHT® MINI.
SKINDICHT® MINI
SKINTOP® MSR-M

Especially for thick-walled housings.

Identifiable by XL in the name, e.g. SKINTOP®MS-M-XL.

SKINTOP® MSR-M

Especially for thick-walled housings.

Identifiable by XL in the name, e.g. SKINTOP®MS-M-XL.

SKINTOP® MS-M-XL

Halogen-free products

Find out more here

Shielded products

Find out more here

Why are lead-free cable glands used?


We are sure that if you want to be successful in the future, you have to focus on sustainability

By developing the right connection solutions for your requirements at an early stage, we enable maximum planning in your long-term projects.

In the background:

For some time now, metallic materials have had to do without lead as an additive to make them easier to process - with one exception: up to 4 percent is still permitted in copper alloys - including brass, the popular metal for cable glands. this exemption was due to expire on July 21, 2021, but will now be delayed a little longer. If the exception ends as planned, brass will no longer be allowed to contain any lead, as stipulated by the European Directive RoHS (Restriction of Hazardous Substances). In the REACH chemical regulation, lead is also on the candidate list for “Substances of very high concern”, which could soon be prohibited.

LAPP thought ahead and launched the first lead-free SKINTOP® cable gland on the market. For you and your applications.

More on the topic of lead-free
SKINTOP® The new lead-free brass cable gland – made by LAPP

When are brass cable glands used?


Often, the material of the cable gland alone does not determine its use.

The type of cable used which is to be routed, the environment in which the cable gland is to be used and the number of properties that it must fulfill also play a role.

A device or machine can have both plastic and brass cable glands. Always consider brass cable glands if you expect the product to be subjected to high chemical and mechanical stress (only stainless steel cable glands can outperform this and are even more resistant). Our products are typically used in these areas:

  • Mechanical and plant engineering
  • Control cabinet construction
  • Wind power
  • Agriculture
  • Building installation
  • Rail transport
  • Shipbuilding

Why buy brass cable glands from LAPP?


Extraordinary special products for challenging special applications

Would you like to purchase a brass cable gland? We have compiled the most important in-house developments from this product group, with which we stand out on the market. Experience it for yourself:

Looking for a cable gland that can be installed safely, quickly and easily and offers optimum EMC protection? Then it's best to use our SKINTOP® MS-M BRUSH. Thanks to its innovative – and patented – 360° brass brush, it offers low-resistance contact between the braided shield and the cable gland without damaging the braided shield.

For painted, anodized or powder-coated housings, it is recommended to use a lock nut with cutting edges. The SKINDICHT® SM-PE-M ensures optimum contact with the housing, thus protecting your application against electromagnetic interference and equipotential bonding.

Do you use plastic glands? The perfect time to present our innovative EMC enlarger: SKINTOP® BRUSH ADD-ON. The world's first patented active EMC lock nut. Cuts into the housing while simultaneously offering optimum, low-resistance 360° shield contact. You can find further information about our brush system here.

SKINTOP® MS-M BRUSH
Your flat cables require special support. This is why we developed SKINTOP® FLAT with a special sealing design that enables effective sealing for both angular and round cable contours.
SKINTOP® FLAT
In applications with recurring movements, especially in electrical hand-held devices, it can sometimes be so excessive that conventional cable glands cannot provide sufficient protection against excessive bending. For these applications, we recommend the SKINTOP® BS-M METAL with stainless steel bending protection spiral and protective ring. Kinking or breaking the conductor were things of the past. This cable gland has been tested for bending and breakage.
If a cable is tightened correctly or bent back and forth, the requirements for the right cable gland also increase. With the SKINTOP® GRIP-M, LAPP has a cable gland designed for such demanding applications. Its double lever ensures reliable bending and anti-kink protection of the cable as the cable is clamped on all sides. This achieves ten times higher strain relief in comparison to conventional cable glands. It is primarily intended for use in machine and systems parts that are moved, such as foot switches, circular saws or push-button control units.
SKINTOP® GRIP-M

In applications where people and property need to be protected as effectively as possible against the effects of a fire, care must be taken to ensure complete absence of halogens when selecting products. The materials should always be halogen-free so that no toxic gases are formed in the event of a fire.

The SKINTOP® MS-HF-M with halogen-free seals is also particularly suitable for railway technology as its materials are self-extinguishing in the event of a fire. It meets the fire safety requirements in accordance with DIN EN 45545-2 and DIN EN 45545-3 (hazard level HL3 or fire resistance class E30) and can be used in rail vehicles in line with standards.

SKINTOP® MS-HF-M
