Coaxial cables

For the transmission of high frequency signals

The RG (according to MIL-DTL 17 H) and RGB cables from LAPP can be used for high frequency data transmission. The coaxial cables are designed for fixed and limited flexible installation and can be used in enclosed rooms and outdoors at temperatures of up to -55°C to +250°C.

Categories

Cables and wires

Filter

Reset

Filter

Filter

Reset

  • General information
    • Product type
      • Coaxial cables
    • Brand
      • UNITRONIC®
    • Copper index (lb)
      • 483.8 lb/10,000 ft
  • Electrical characteristics
    • Nominal characteristic impedance tolerance
      • +/- 3Ω
    • Nominal surge impedance
      • 75 Ω
  • Product design
    • Basic material of outer jacket
      • Polyvinylchloride
    • Basic material of outer jacket, short form
      • PVC
    • Cable form
      • Round
    • Coaxial cable type

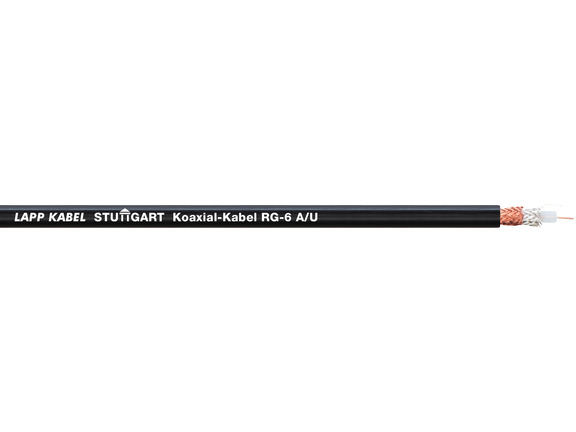

      • RG 6 A/U
    • Concentric conductor
      • Yes
    • Including protective conductor
      • No
    • Inner conductor material
      • Copper-plated Steel
    • Nominal diameter conductor (mm)
      • 0.028 in
    • Nominal diameter of core
      • 0.185 in
    • Nominal outer diameter
      • 0.331 in
    • Number of wires
      • 1
    • Outer conductor
      • Copper braiding
    • Outer jacket color
      • black
    • Shielded
      • Yes
    • With rodent protection
      • No
  • Product features
    • Characteristics
      • Flame-retardant
    • Application area
      • Fixed Installation
    • Flame retardance according to
      • IEC 60332-1-2
    • Minimum bending radius in inch, occasionally moved
      • 3.307 in
    • Minimum bending radius in inch, stationary
      • 1.984 in
    • Minimum bending radius, fixed installation
      • 6 x outer diameter
    • Minimum bending radius, occasionally flexing
      • 10 x outer diameter
    • Temperature, fixed installation
      • -40 °C to 80 °C
  • Certifications and standards
    • Certificates
      • CE marking
      • UKCA marked
    • EAC certification number
      • ЕАЭС N RU Д-DE.АЮ64.В.00130/20, ЕАЭС N RU Д-DE.РА01.В.47116/21
    • EAC-certified
      • Yes
Results (1)
