44423222
Modular system; Crimp termination; Number of contacts: 12; Slots required: 1; 400 V AC rms / DC according to IEC; 10 A according to IEC

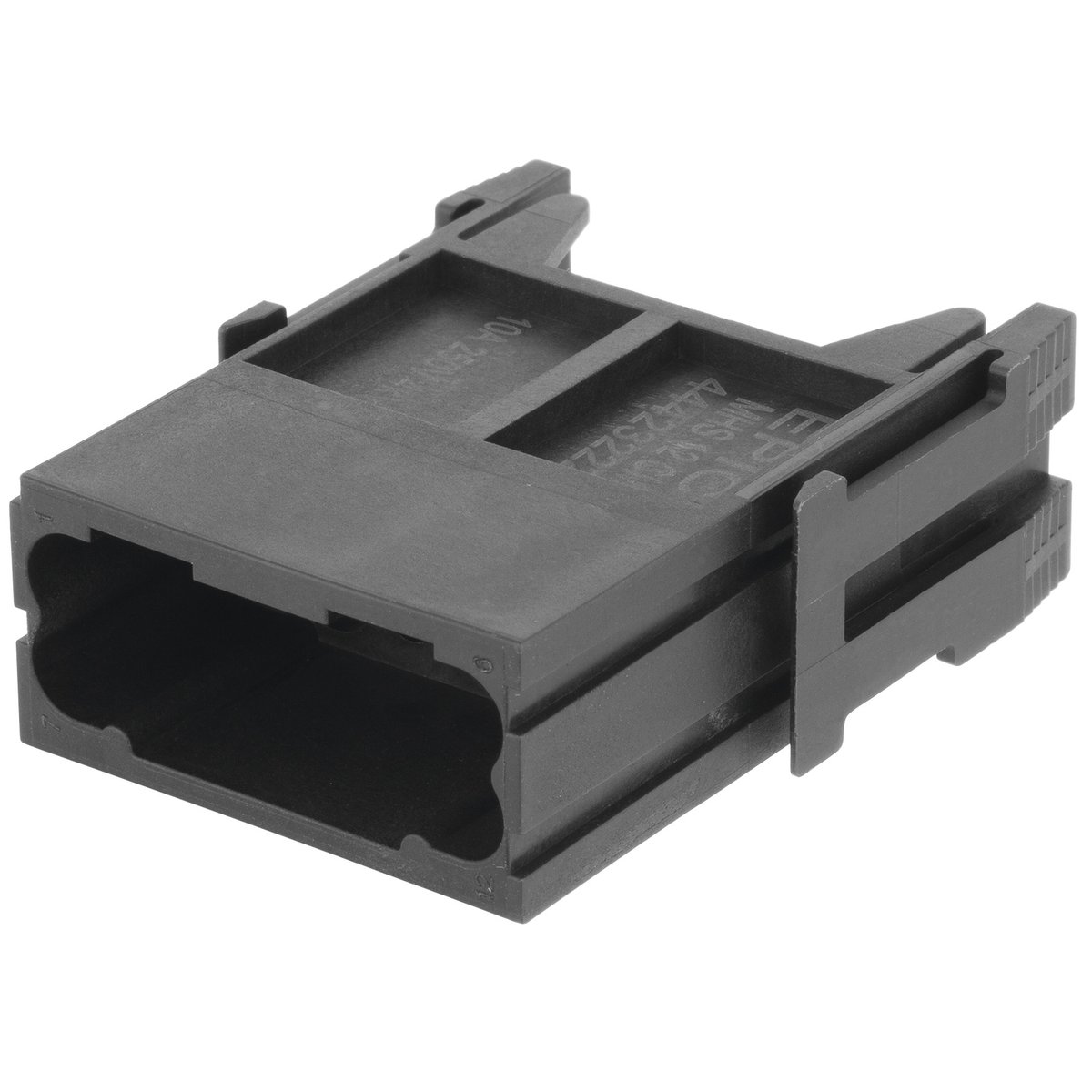

EPIC® MHS 12 CM
Add to product comparison
Price
28,40 €
(283,97 €/100 PC)
10 PC per packing unit
Login for the stock enquiry.
Available. Find out the delivery date in the offer.
Benefits
- Module with 12 signal contacts for transmissions up to 10 A.
- Connectors with modular configurations can be connected to market-standard connectors.
- Crimp termination creates a vibration-proof connection, provides maximum contact protection between the contact and cable and is suitable for automated assembly.
- Different crimp contacts available for different conductor cross-sections.
- Locks effortlessly into the fixed EPIC® MH multi-frame with an audible click. Much easier assembly than hinged and sliding frames.
- UL certification according to technical data enables the product to be used on the North American market.
Application
- For manufacturing a modular connector insert.
- Can be used universally at machine interfaces for many signal transmission applications.
- For supplying power for signalling, lighting and devices.
- Compliant with standards for use in rail vehicles (fire behaviour test according to DIN EN 45545-2:2016-02, requirements sets R22 and R23, hazard levels HL1, HL2 and HL3).
