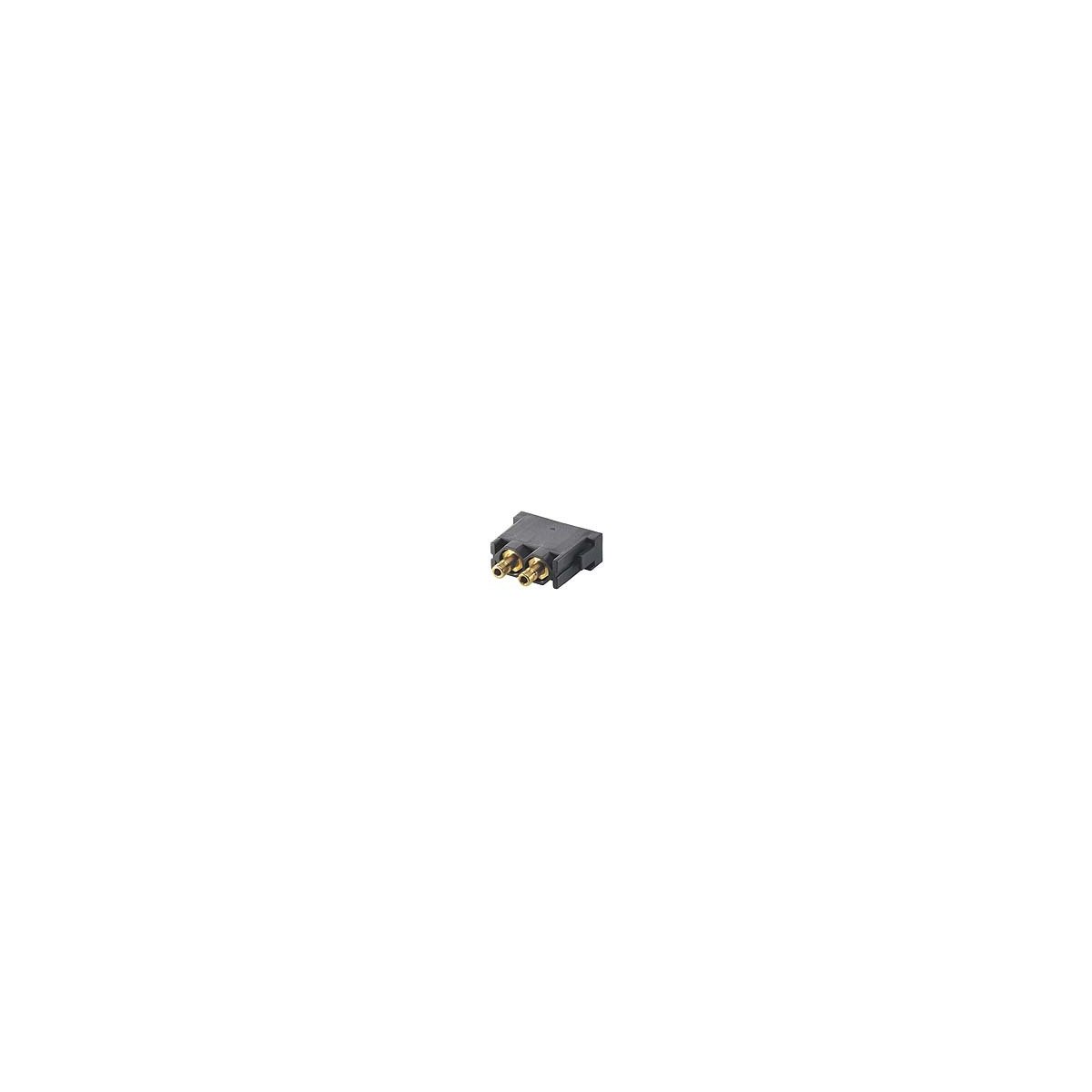

MC module modular system; Number of contacts: 2; Contacts included; Required slots: 1; Copied to clipboard
Add to product comparison
- Module with 2 connections for compressed air supply up to 10 bar.
- Modular connectors offer a wide range of possible combinations and can be assembled flexibly - even to create hybrid connectors for different media.
- Available for hose inner diameter 2.5 mm or 4.0 mm.
- The socket module includes shut-off valves that maintain air pressure in the application even when the connector is pulled.
- Made of robust plastic (flammability class V-0 according to the UL94 testing procedure for the flammability of plastics).
- Snaps effortlessly into the matching module frame.
- For the production of a modular connector.
- For the compressed air supply of devices and machines in various applications.
- For use with the rectangular connector module frames of the EPIC® MC series.
- For use with many EPIC® rectangular connector housings.
