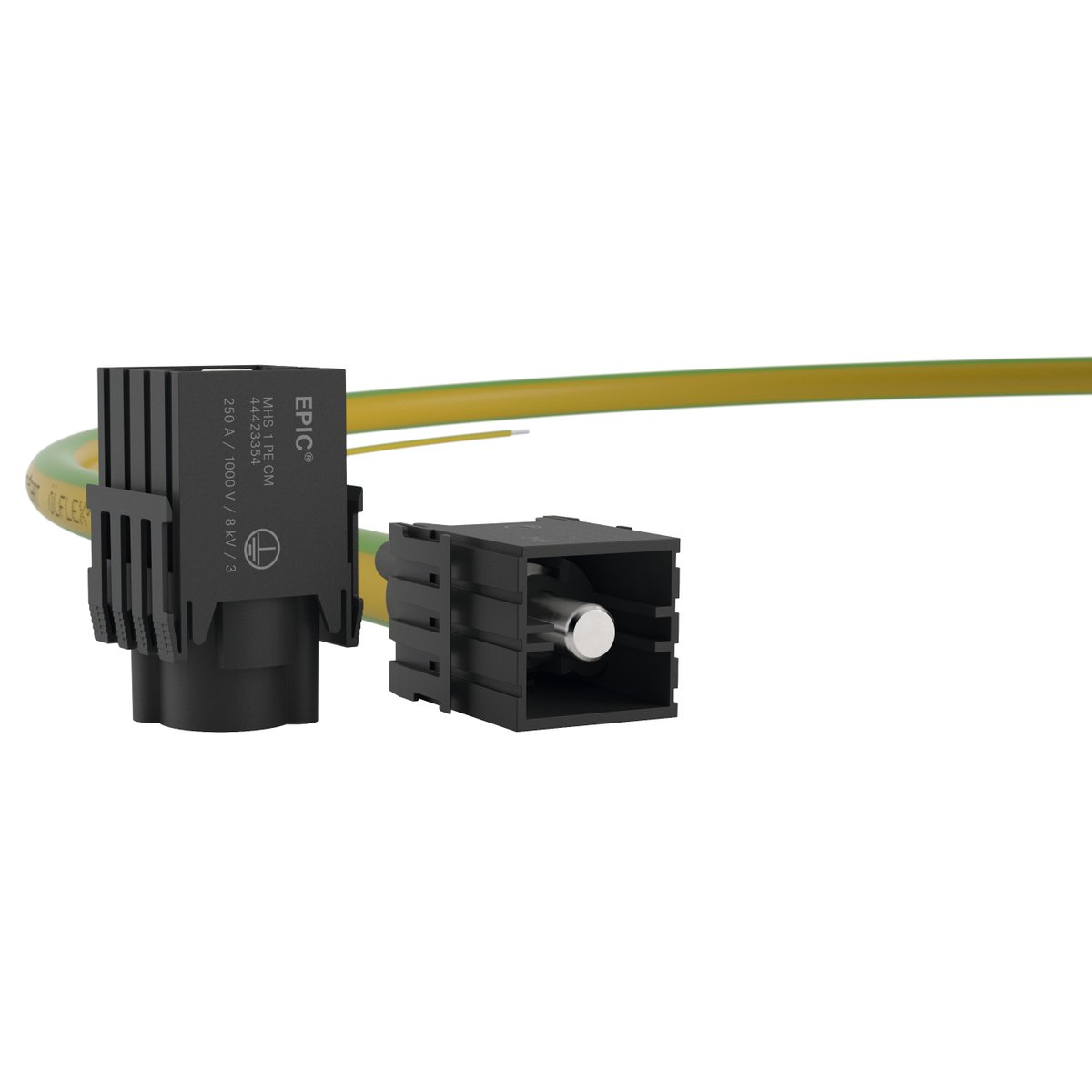

MH module modular system; Number of contacts: 1; , With protective conductor; Required slots: 2; For cross-section (min./max.): 25mm² - 95mm²; 1000 V AC rms / DC according to IEC; 250 A according to IECCopied to clipboard
Add to product comparison
Benefits
- High-current module for accommodating 1 PE protective earth contact for very high power supply up to 250 A.
- Connection of the protective earth (PE) via the protective conductor module enables a cable with a large cross-section to be safely connected to the machine or application, while simultaneously connecting the frame and housing to the protective mechanisms.
- Modular connectors offer a wide range of possible combinations and can be assembled flexibly - even to create hybrid connectors for different media.
- Connectors with modular configurations can be connected to market-standard connectors.
- Different crimp contacts available for different conductor cross-sections.
- Locks effortlessly into the fixed EPIC® MH multi-frame with an audible click. Much easier assembly than hinged and sliding frames.
- Compliant with standards for use in railway vehicles (fire behaviour test according to DIN EN 45545-2:2016-02, requirements sets R22 and R23, hazard levels HL1, HL2 and HL3).
Application
- For the production of a modular rectangular connector insert.
- For connecting devices and machines to a power supply in various applications.
- For use with the rectangular connector module frames of the EPIC® MH series.
- For use with many EPIC® rectangular connector housings.
