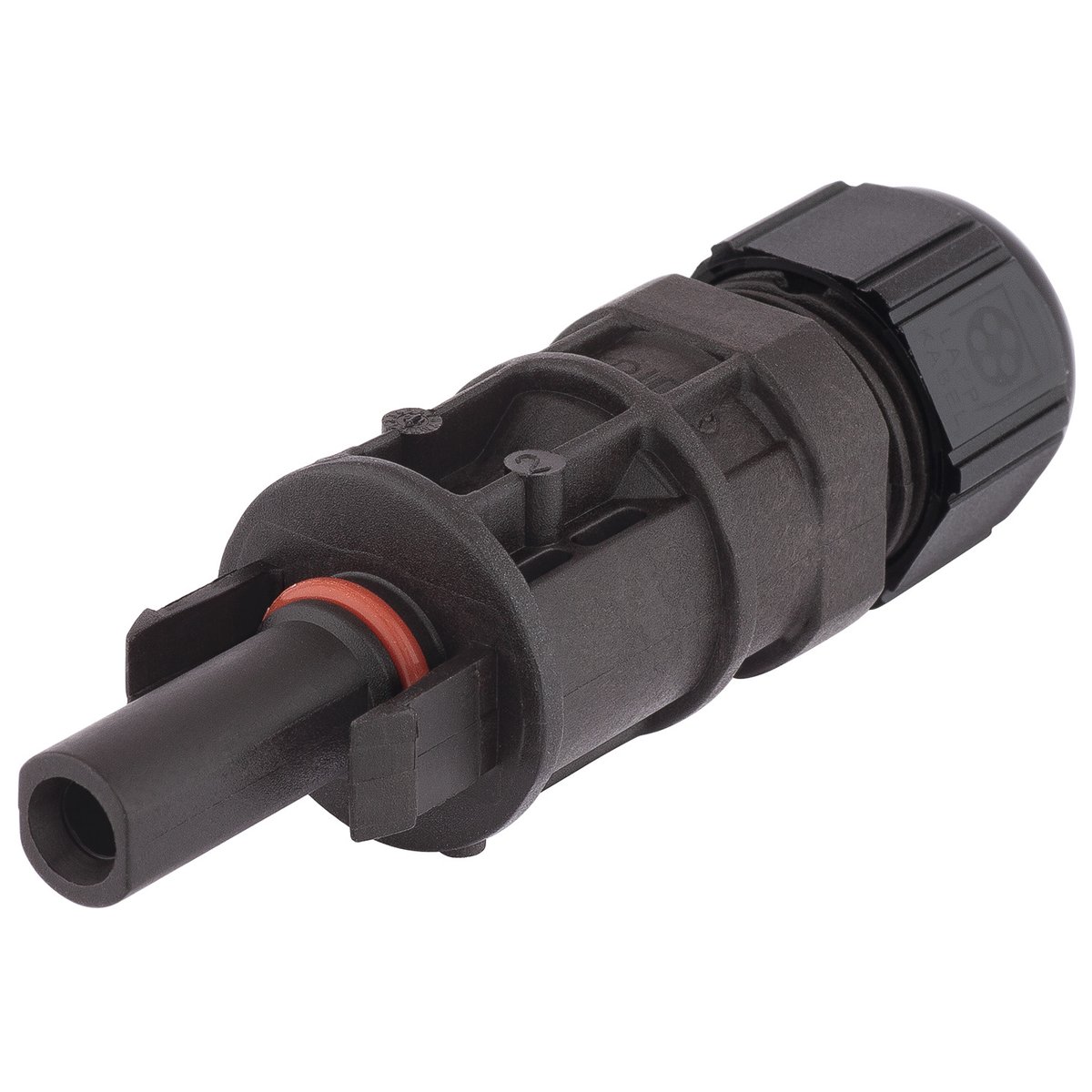

Solar connector, Socket; Crimp termination; For cross-section (min./max.): 10 mm²; 35 A according to IEC; 1500 V DC according to IEC; Housing base material: Polyamide; Material contact: Brass Tin-plated; IP 68 - 1m (10h); including contactsCopied to clipboard
Add to product comparison
Price
303,73 €
(303,73 €/100 PC)
100 PC per packing unit
Login for the stock enquiry.
Loading...
Load availability ...
Benefits
- Extremely weatherproof and durable thanks to the high-quality materials and solid construction.
- Compatible with other systems on the market.
- Low contact resistance at the contact point between the plug and socket for efficient energy transmission.
- Suitable for cable cross-sections up to 10 mm² to overcome long cable lengths.
- Crimp termination ensures a secure connection between the connector and the cable (to be disconnected with a tool).
- Double locking hooks secure the contact to the connector.
- With TUEV Rheinland testing mark.
Application
- For use with EPIC® SOLAR 4PLUS M counter connectors (male insert).
- For modern, high-performance photovoltaic systems up to 1500 V.
- For the cabling of solar modules, inverters and stand-alone systems.
- Can be used with many ÖLFLEX® solar cables.
- Note: Plugged connections have protection class IP 68 (1 m for 10 h).
