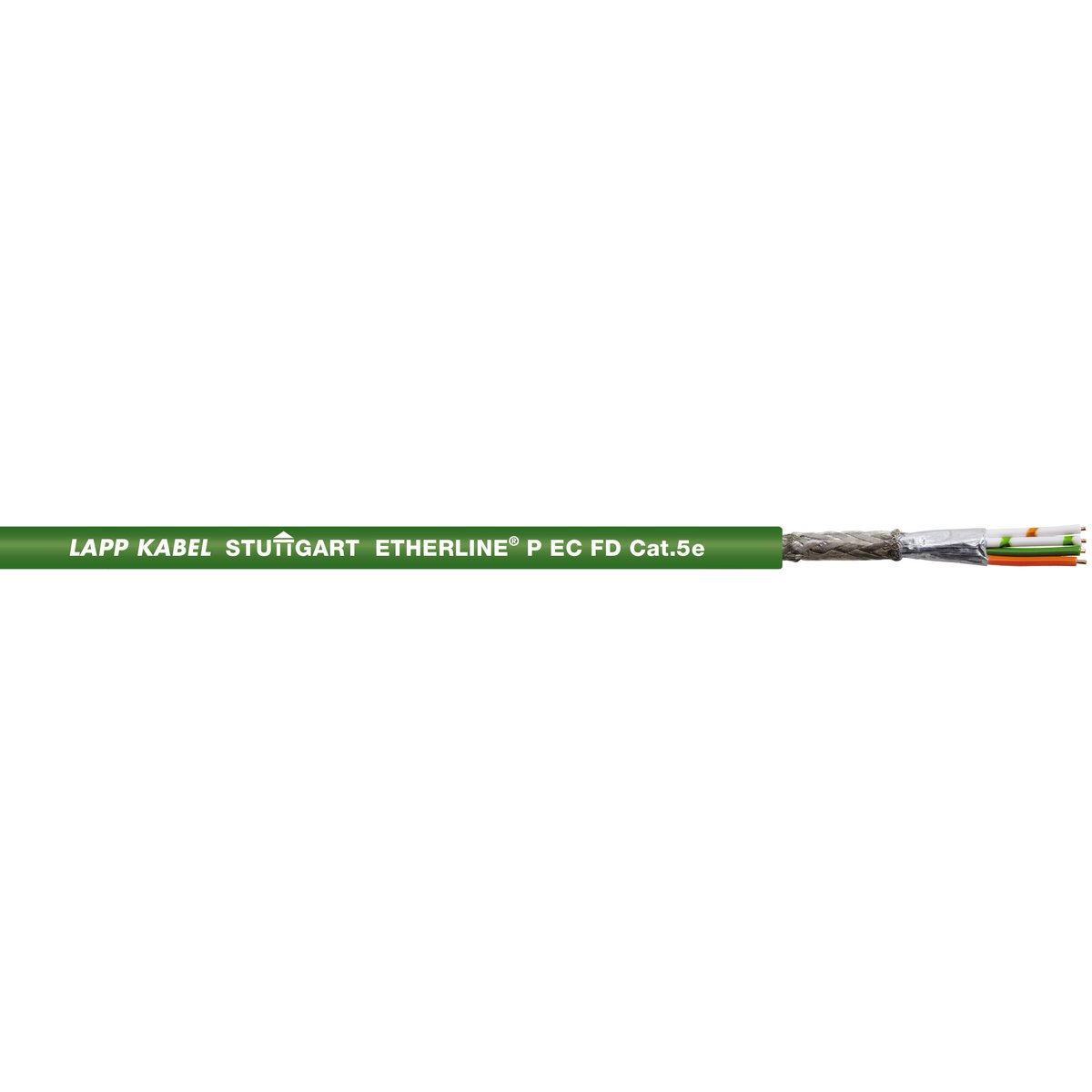

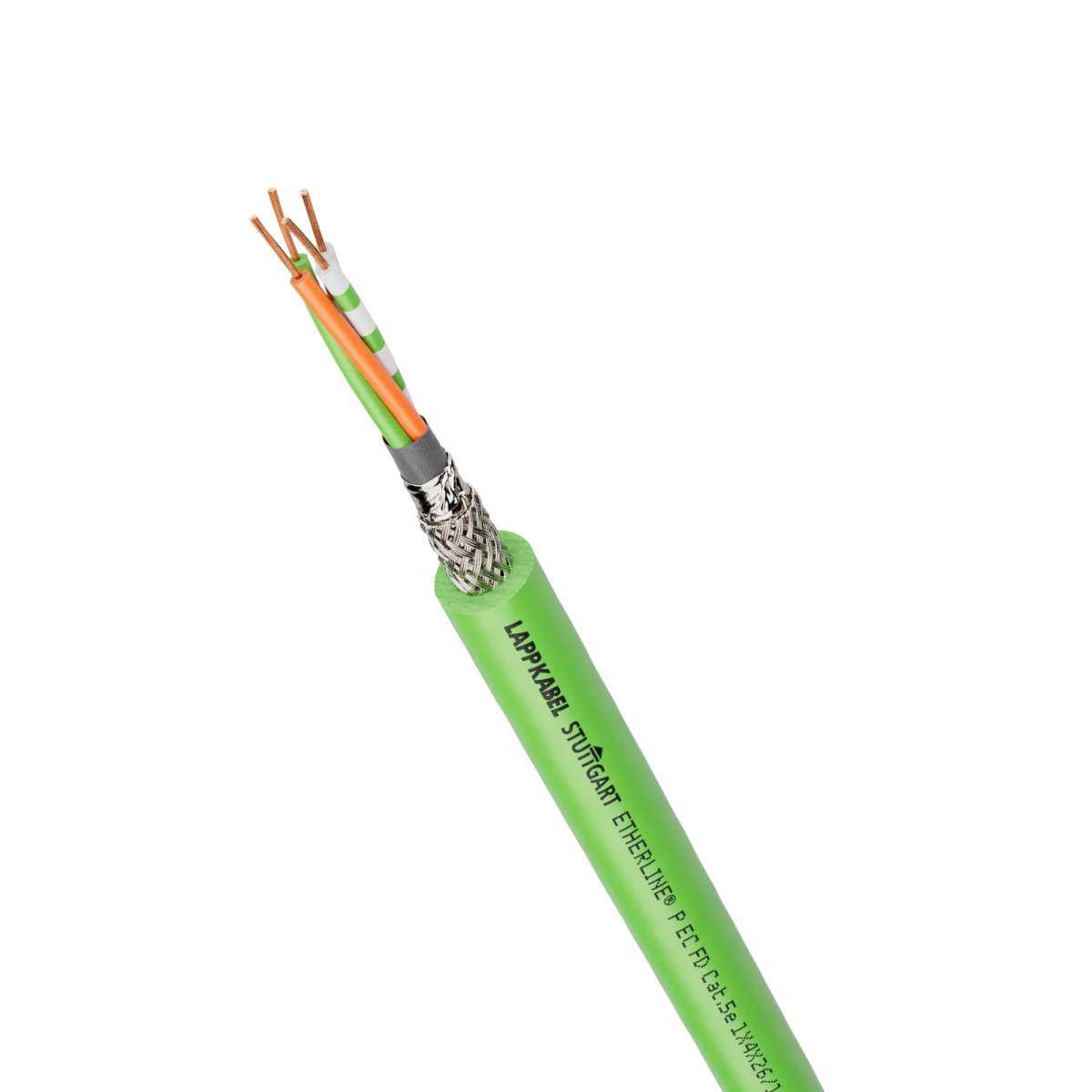

Ethernet cable; Cable chain, Flexible; EtherCAT, ETHERNET/IP; Cat.5e; SF/UTP; PUR; Halogen-free; greenCopied to clipboard
Add to product comparison
Benefits
- Fast information exchange through Ethernet technology.
- Cat. 5e performance up to 100 Mbit/s.
- For transmission of analogue and digital signals in the frequency range up to 100 MHz.
- Resistant product thanks to the outer sheath material which is resistant to abrasion, notches and cuts.
- High resistance to electromagnetic interference thanks to star quad stranding as well as double shielding made of aluminium-laminated foil and copper stranded shielding with a high degree of coverage (SF/UTP).
- UL certification according to technical data enables the product to be used on the North American market.
Application
- Cable design allows highly flexible, continuously moving use in moving machine parts and in cable chains.
- Especially for environments where electromagnetic compatibility (EMC) is required.
- Suitable for all LAN networks and Ethernet applications up to 100Base-T.
- Also suitable for EtherCAT and EtherNet/IP applications.
- Suitable for patch cable assembly up to a cable length of 60 m.
- The PUR outer sheath is resistant to mineral oil-based lubricants and highly resistant to chemicals.
- Flexible use at temperatures down to -30°C.
