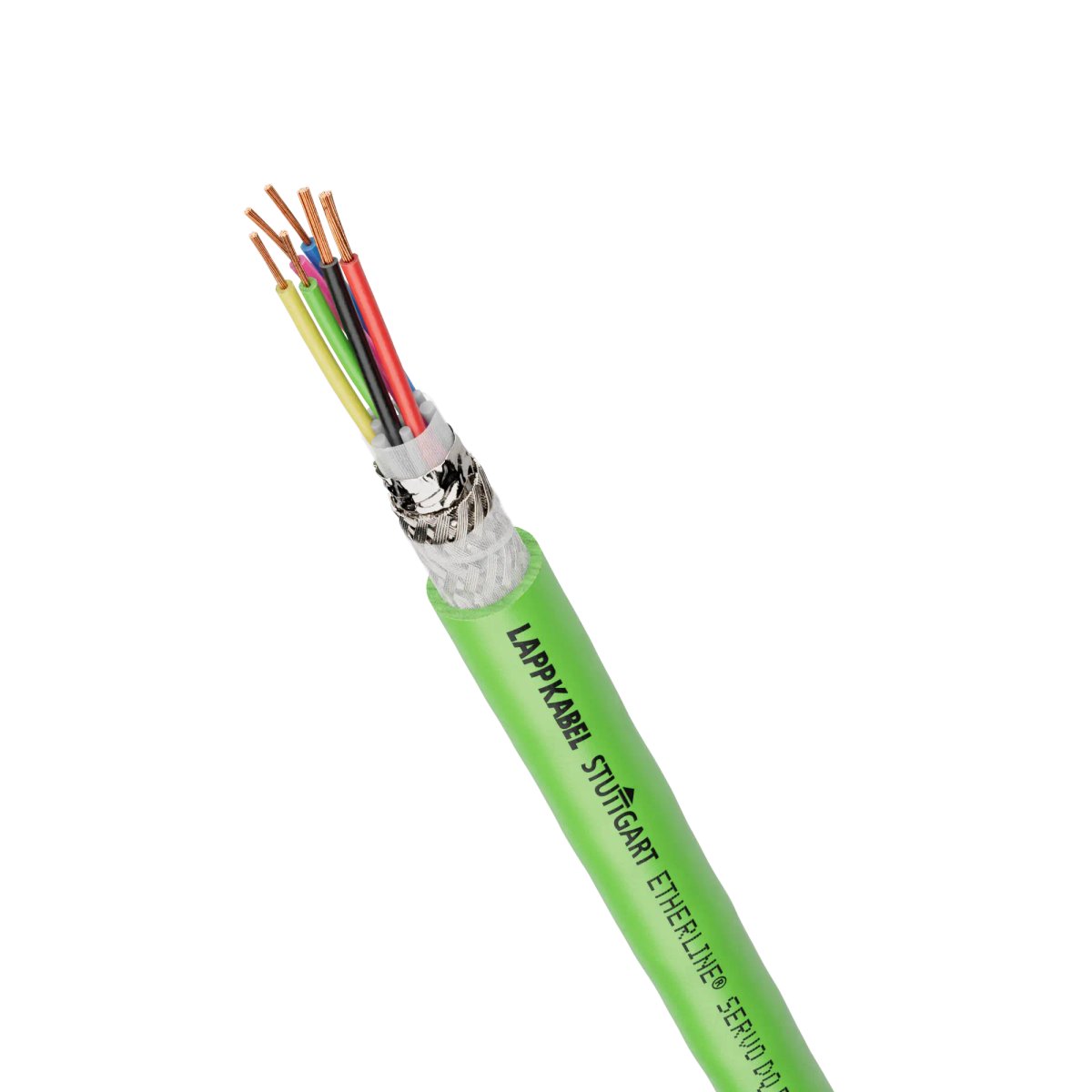

ETHERLINE® SERVO DQ FD P Cat.5e

Ethernet cable; Cable chain; Cat.5e; SF/UTP; PUR; Halogenfree; green

Article Name:

Article Number:

2170937

Add to product comparison

Price

3.749,40 €

(749,88 €/100 Metre)

Quantity

Length in metres

Available. Find out the delivery date in the offer.

Compliant with the open DRIVE-CLiQ® system interface.
Highly flexible internal cable design with fillers for maximum mechanical stress resistance.
Reduced cabling effort thanks to an additional core pair for the power supply of the rotary encoder.
Durability was proven by over 1 million bending cycles in the cable chain tested at the LAPP Test Centre.
UL/CSA certification according to technical data enables the product to be used in the North American market.
Ideal protection against electromagnetic interference thanks to copper screening braiding with a high degree of coverage.
Cat. 5e performance up to 100 Mbit/s.

For use as the servo drive supply in SIEMENS® SINAMICS‑S120 drive systems.
For wiring the control unit and synchronous motor and/or rotary encoder with DRIVE‑CLiQ® system interface.
Cable design allows highly flexible, continuously flexing use in moving machine parts and in the cable chain.
Can be used in dry, damp and, especially, harsh and oily spaces.
The PUR outer sheath is resistant to mineral oil-based lubricants and highly resistant to chemicals.
